GOOSENECK SEMI-TRAILER

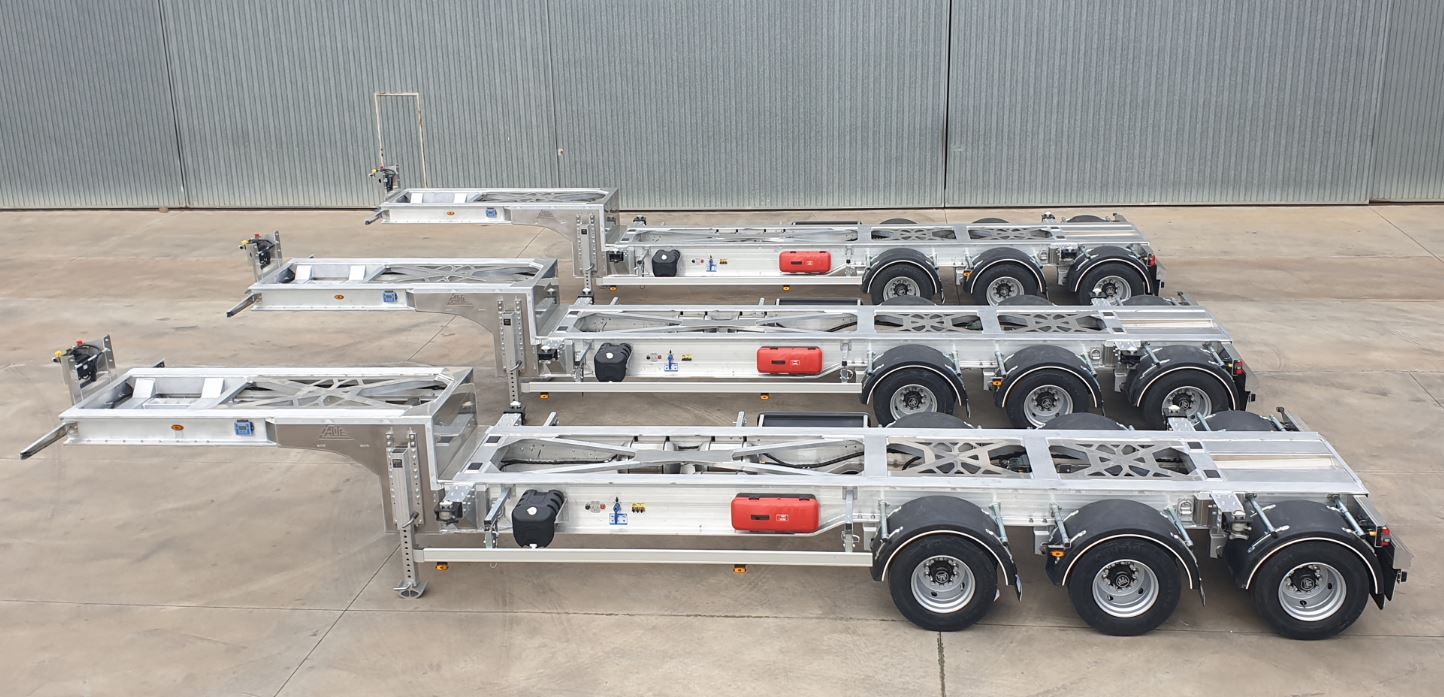

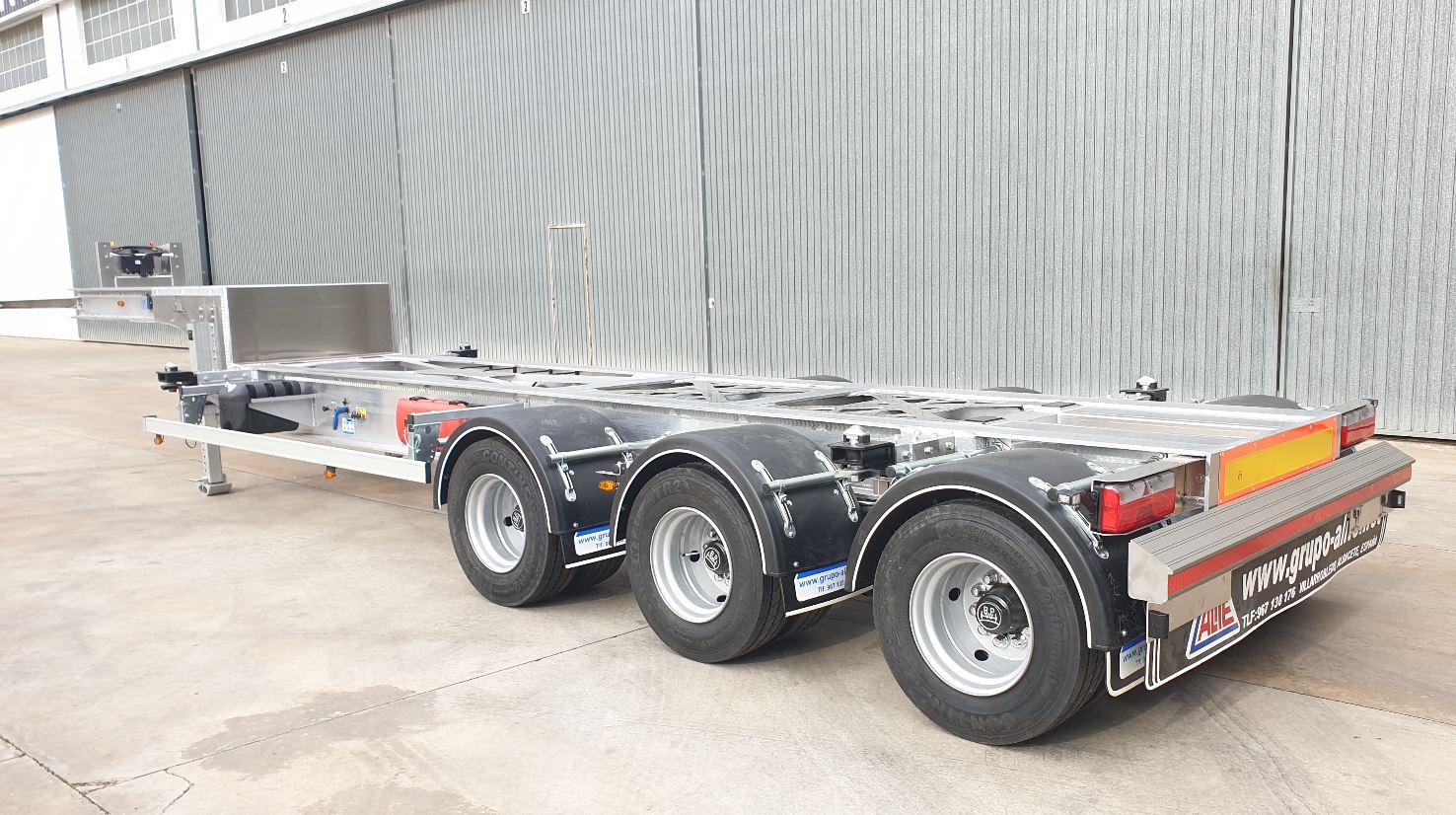

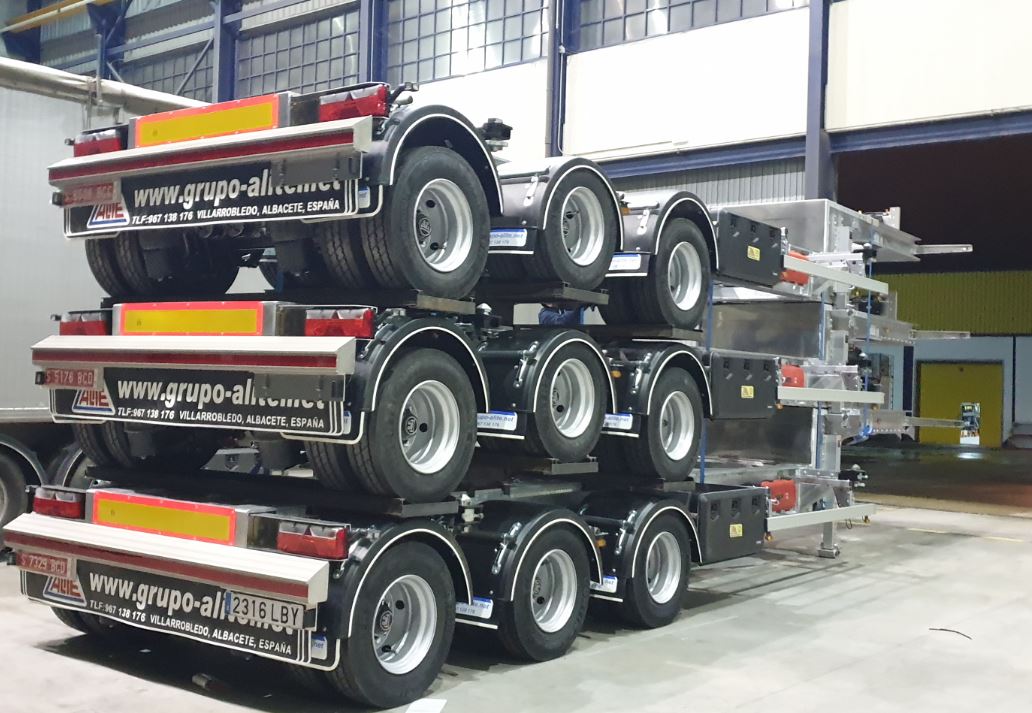

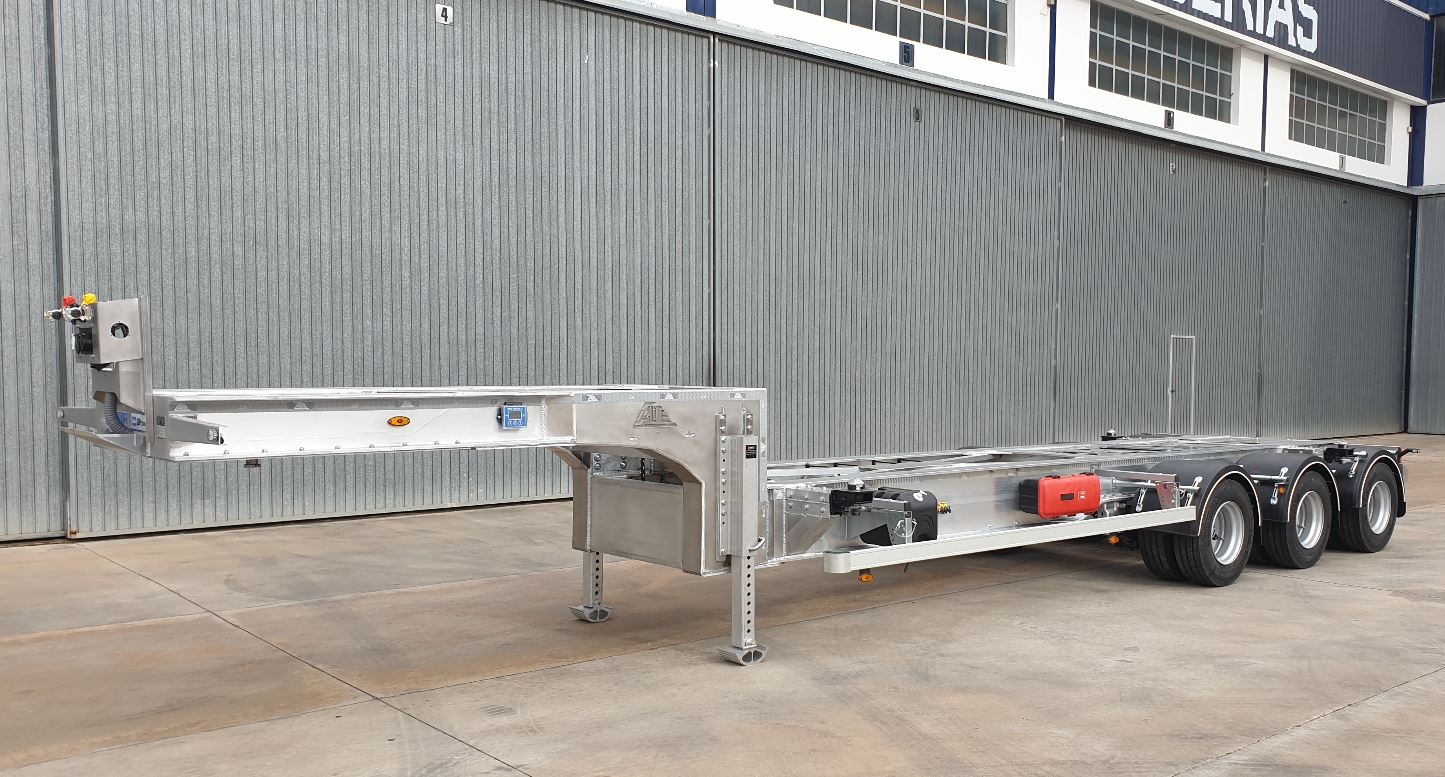

INTEGRAL ALUMINIUM GOOSENECK TYPE 20FT CONTAINER SEMI-TRAILER
![PLANO TITV K_064 GÓNDOLA MODIFICADA-01 final](https://www.grupo-alite.eu/wp-content/uploads/2021/06/PLANO-TITV-K_064-GONDOLA-MODIFICADA-01-final.jpg)
![182-001-1-A-ALITE-ES-IRMAXO 2-01](https://www.grupo-alite.eu/wp-content/uploads/2021/06/182-001-1-A-ALITE-ES-IRMAXO-2-01.jpg)
Previous
Next

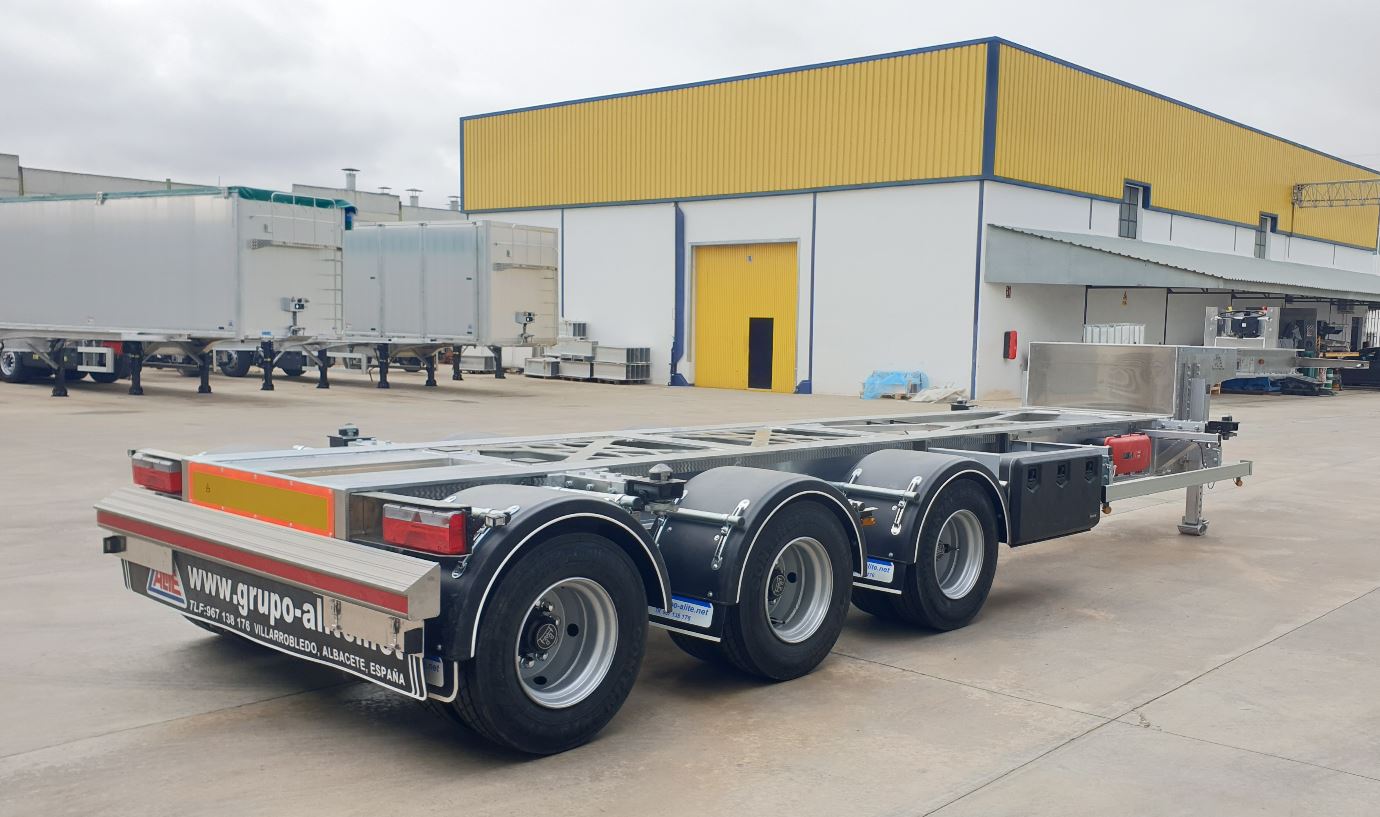

This is a vehicle designed to carry taller and heavier containers. Its integral aluminum construction allows a reduced empty weight.
- TPMM = 39.000 kg (Technically Permissible Maximum Mass)
- TPMM 1º – 2º – 3º = 9.000 kg.
- TPMM King Pin = 12.000 kg.
- 10.500 mm length.
- Unladen weight of 3,480kg ± 3%.
- Containers of 2,550 mm external width.
- 4,000 mm overall height.
- 905 mm chassis ground clearance in running order.
- Aluminum depressed platform construction.
- 2 aluminum cross members with 4 retractable twist-locks.

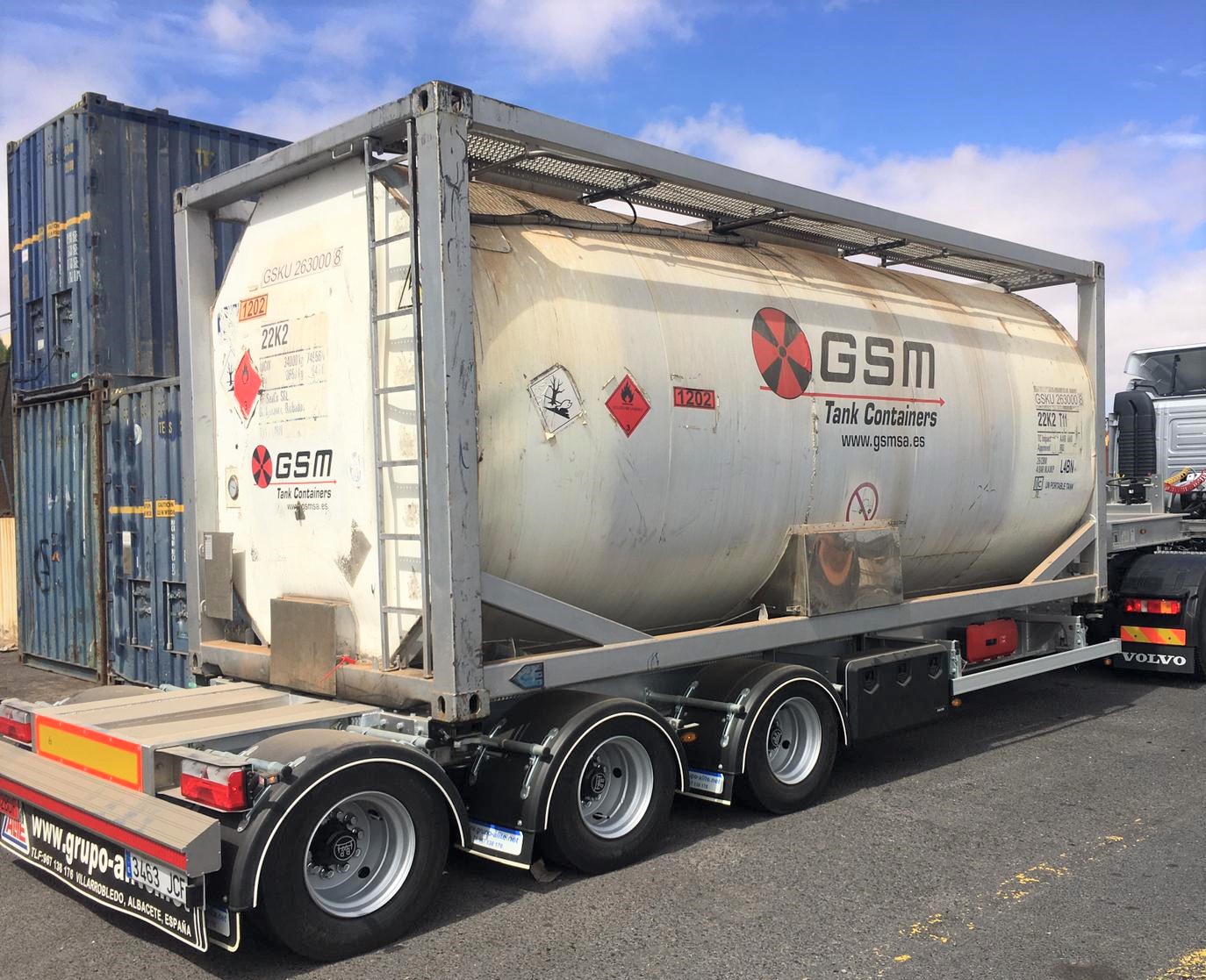

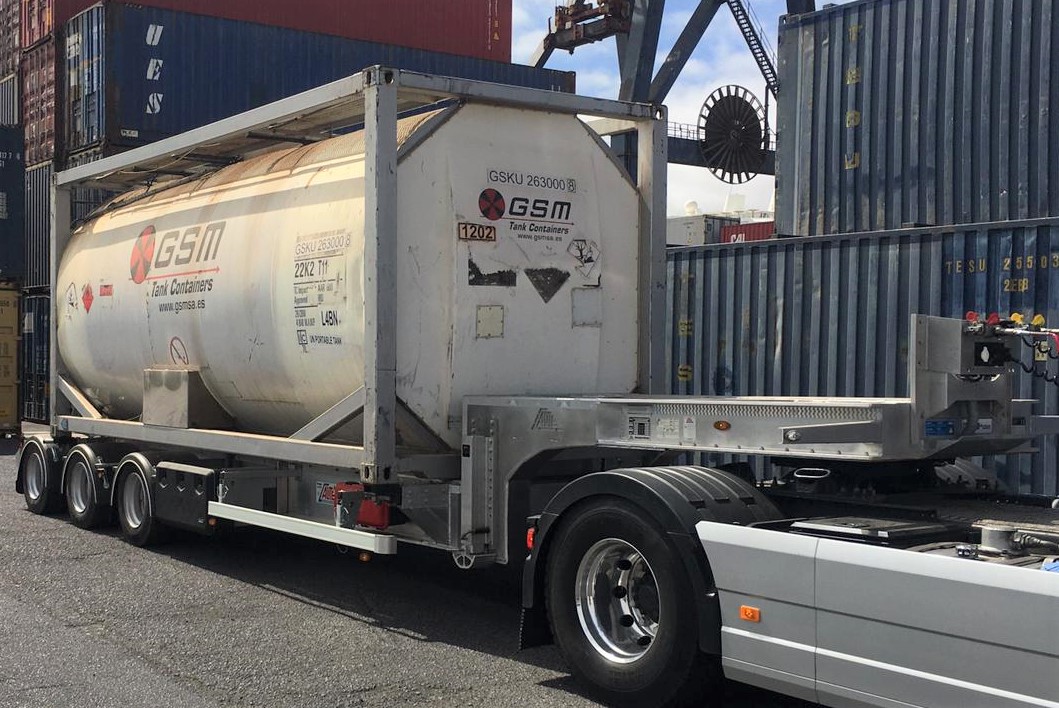

- Suitable for 20′ containers.

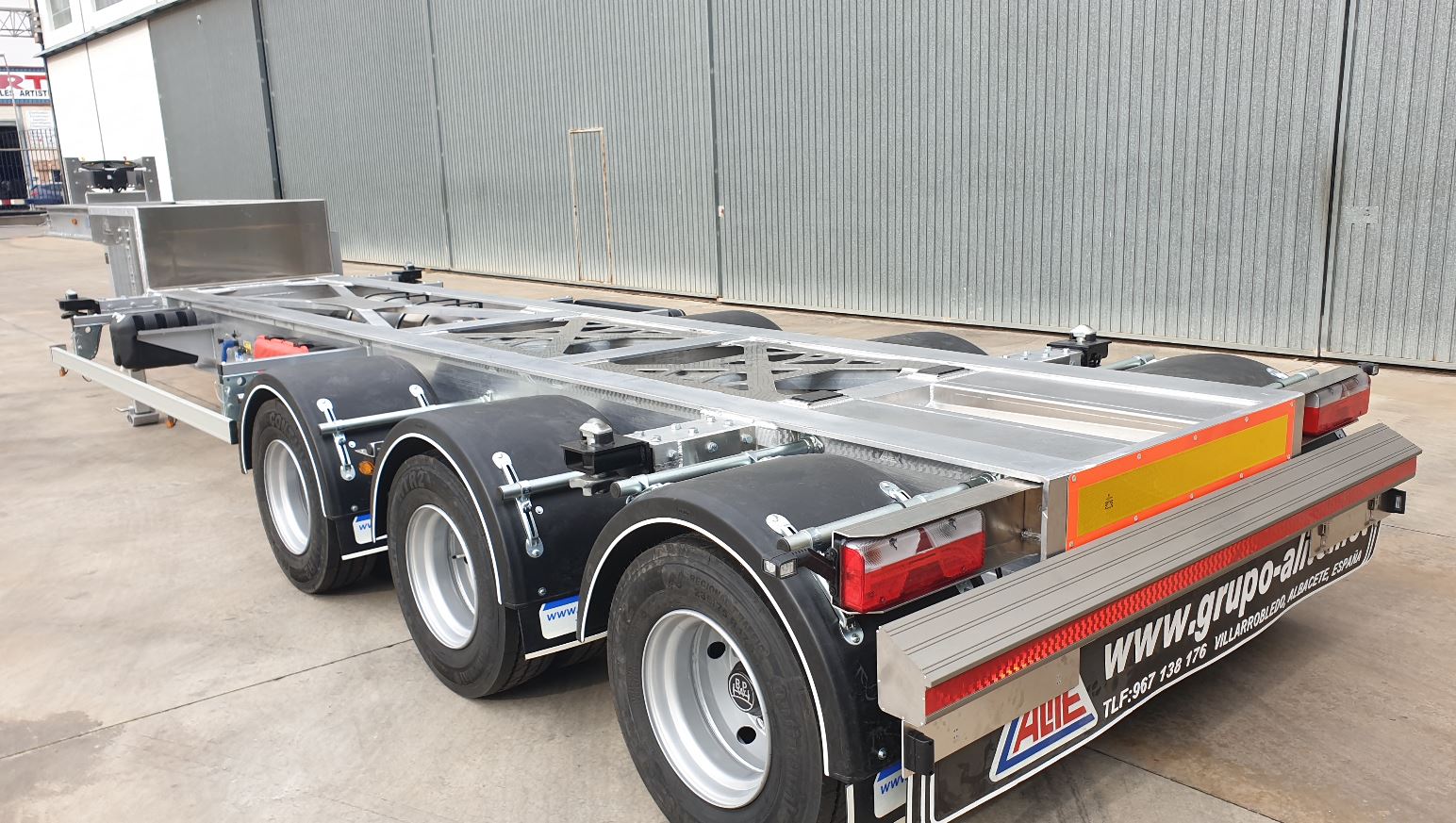

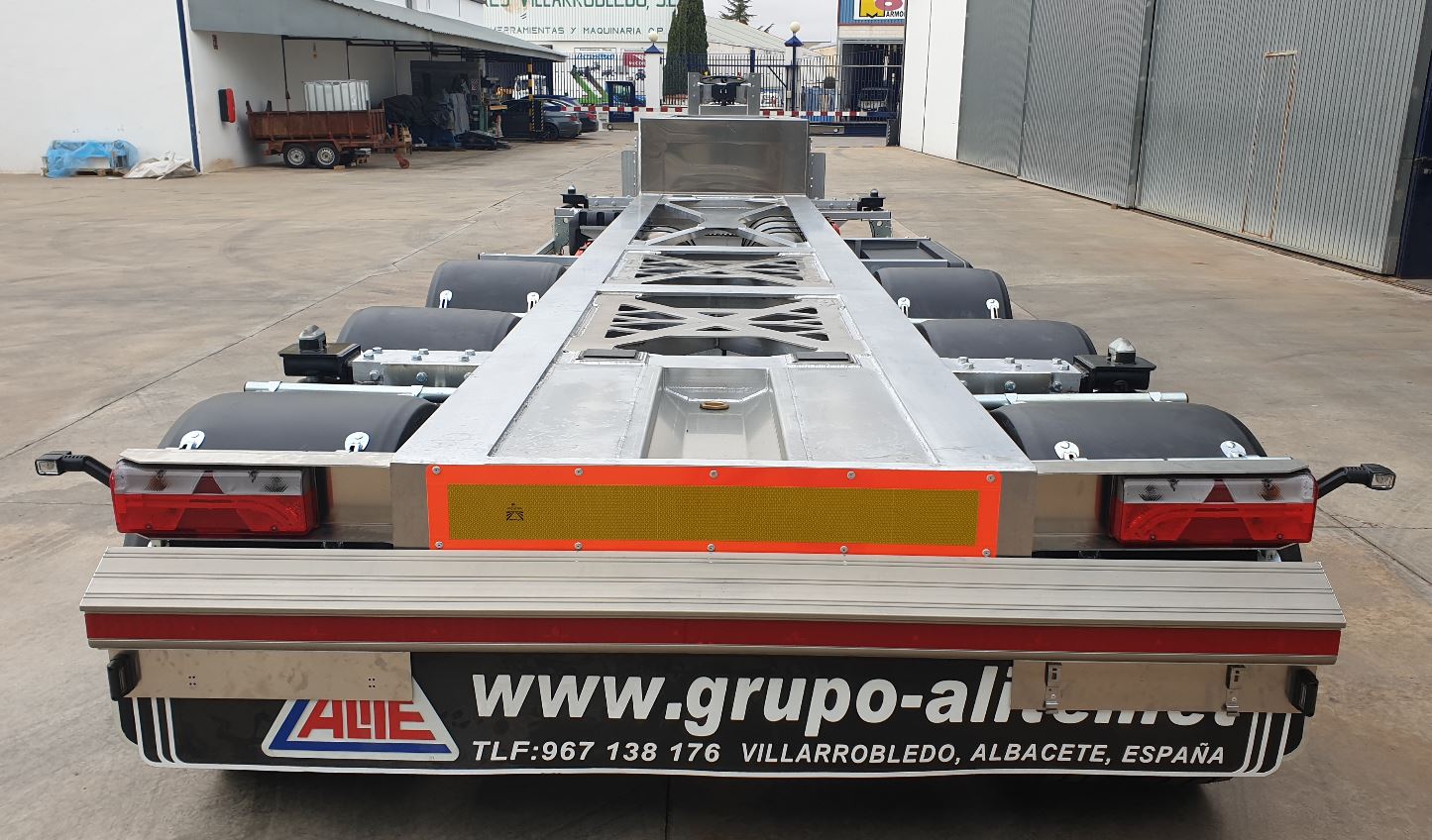

- Rear tray for collecting liquids.
- Aluminum 3-axle chassis.
- 17,5″ BPW drum brakes.
- EBS + RSS
- Pneumatic suspension
- No axle lifts due to low ground clearance.
- According to European type approval.
- 12 wheels with steel rims and 235/75 R17,5″ tires.
