Opciones múltiples *

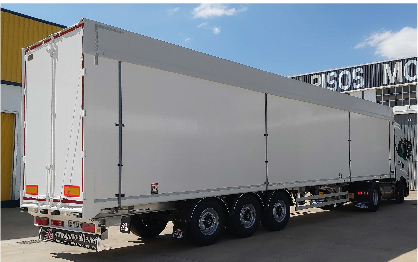

HP5

Elemento único

Price: 56.705,00 €

EXW price. Withdrawal of vehicle at the factory. Villarrobledo. Albacete. Spain. Taxes not included VAT/VAT. Standard vehicle price with configuration selected (grayed out) by default.

What does this price include?

HP5-1 CHASSIS SEMITRAILER ALITE (TPMM 39.000 kg)

Configure the chassis of your vehicle

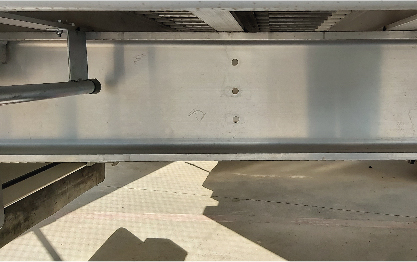

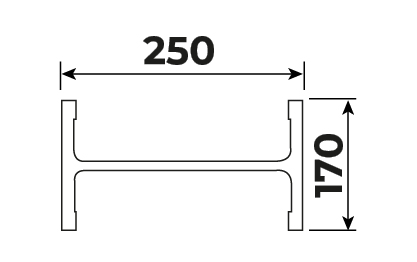

HP5-1.1 Aluminium chassis with 250 mm frames in double T in AL6005 T6 extrusion in one piece. *

STANDARD EQUIPMENT

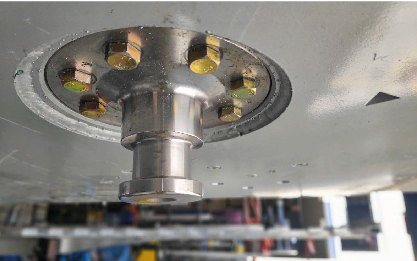

HP5-1.2 Fifth wheel locking design for a 1.120 mm height from the floor. Range of run: 1.100 a 1.150 mm. Technically Permissible Maximum Mass: TPMM = 12.000 kg. Bolt-on fifth wheel plate in 8 mm thick S355 JR steel. 8 mm thick coupling pivot bridge crosspieces in AL5754 H111 folded sheet metal. *

STANDARD EQUIPMENT

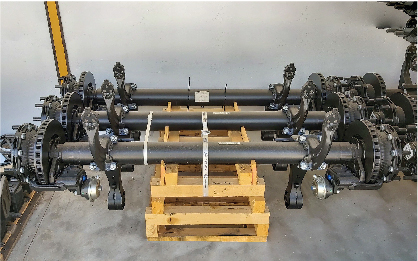

HP5-1.3 Three (3) axles BPW ECOPLUS III with disc brake. Technically Permissible Maximum Mass: TPMM 1º-2º-3º = 9.000 kg per axle. *

STANDARD EQUIPMENT
OP HP5-1.3_01 Change 3rd axle fixed for self-directional BPW ECOPLUS III. 1st and 2nd AIRCOMPACT ACAM L4 (FH 285-345 mm) + 3rd AIRLIGHT II ALMTLL L2 (FH 280-310 mm). (+189,5 kg)
OP HP5-1.3_02 Add BPW AIRSAVE self-pumping system mounted in three (3) ECOPLUS axles 9-12 tn. (+3,45 kg)

OP HP5-1.3_01.01

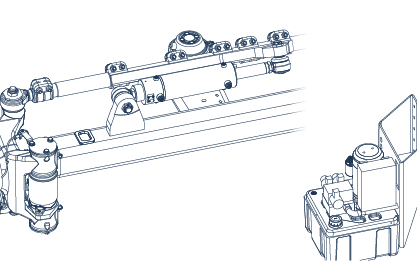

OP HP5-1.3_01.01 Add BPW ARC (Active Reverse Control) in self-directional axle. (+45,0 kg)

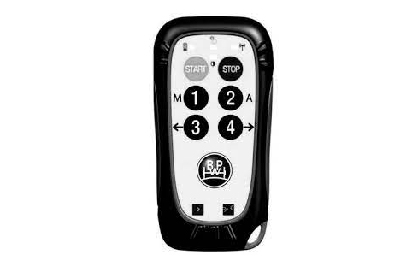

OP HP5-1.3_01.01.1 Add radio control for BPW ARC (Active Reverse Control).

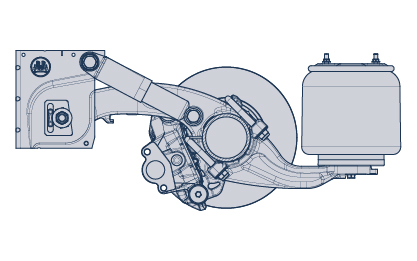

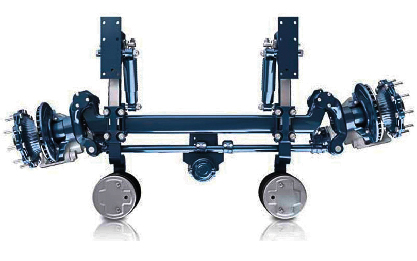

HP5-1.4 BPW ECO AIRCOMPACT integral pneumatic suspension (EAAM L4 FH 285-345 mm). *

STANDARD EQUIPMENT

HP5-1.5 Without axe elevator. *

STANDARD EQUIPMENT

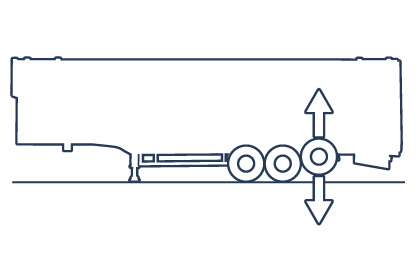

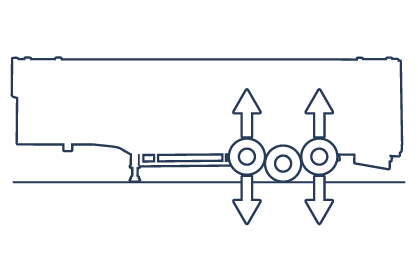

OP HP5-1.5_01 Add automatic liftable axes 3rd. (+23,3 kg)
OP HP5-1.5_02 Add automatic liftable axes 1st. (+23,3 kg)

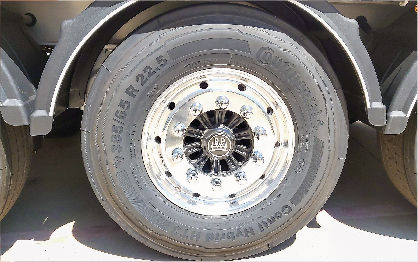

HP5-1.6 Six (6) CHT3 CONTINENTAL tyres, dimensions 385/55 R22,5”. *

STANDARD EQUIPMENT
OP HP5-1.6_01 Change tire CONTINENTAL CHT3 385/55 R22,5 to 6 MICHELIN X MULTI T 385/55 R22,5

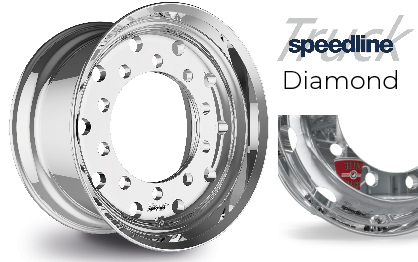

HP5-1.7 Six (6) painted aluminium rims SPEED LINE DIAMANTE B=120 mm. *

STANDARD EQUIPMENT

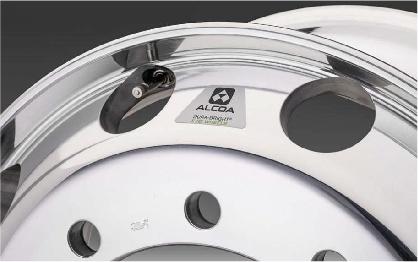

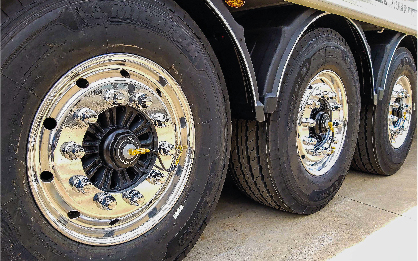

OP HP5-1.7_01 Change to 6 ALCOA DURABRIGHT rims B=120 mm. (-68,0 kg)

HP5-1.8 Without screw-type spare wheel support. *

STANDARD EQUIPMENT

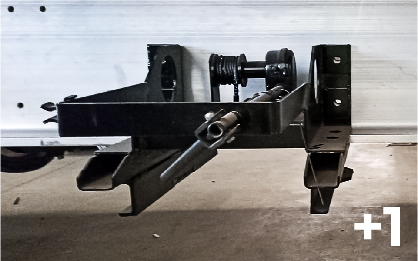

OP HP5-1.8_01 Add one (1) wheel support.

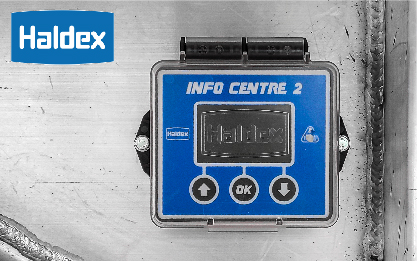

HP5-1.9 HALDEX GEN3 + EBS 4S/2M pneumatic brake system with mechanical suspension. *

STANDARD EQUIPMENT

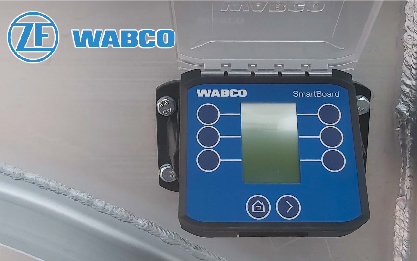

OP HP5-1.9_01 Change HALDEX 4S/2M GEN3+ to the WABCO 4S/2M with electronic suspension.

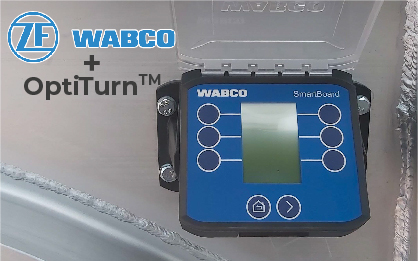

OP HP5-1.9_02 Change HALDEX 4S/2M GEN3+ to the WABCO 4S/3M with electronic suspension + OPTITURN / OPTILOAD (3rd modulator).

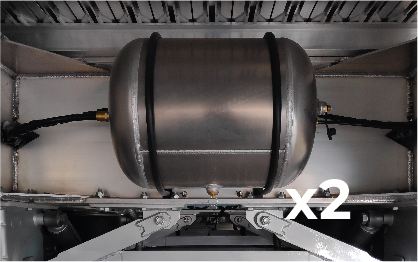

HP5-1.10 Two (2) 60 L aluminium tanks, diameter d396 x 592 mm with supports. One (1) braketank + one (1) suspensiontank. *

STANDARD EQUIPMENT

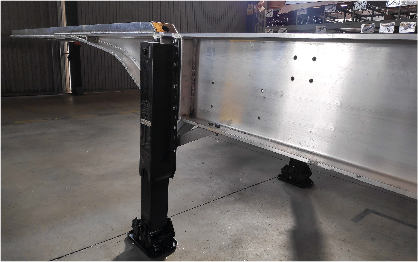

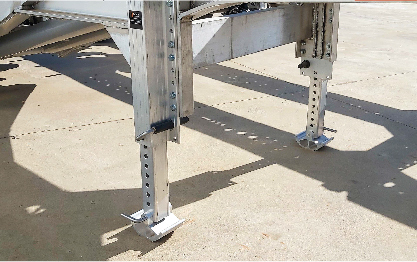

HP5-1.11 Two (2) manual aluminium support legs 650-700 BALTECH / ALU-LEG / PLASTECNIC. *

STANDARD EQUIPMENT

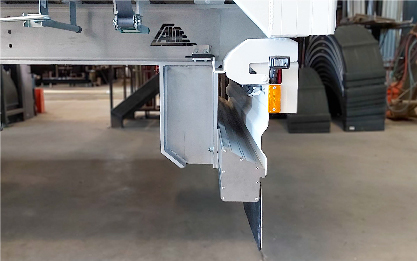

HP5-1.12 Fixed anti-underrun device in anodized aluminium ALA-ALU according to Regulation 58. *

STANDARD EQUIPMENT

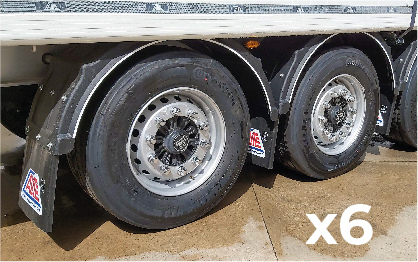

HP5-1.13 Six (6) integral mudguards in polypropylene with anti-splash system valances according to Regulation 109. *

STANDARD EQUIPMENT

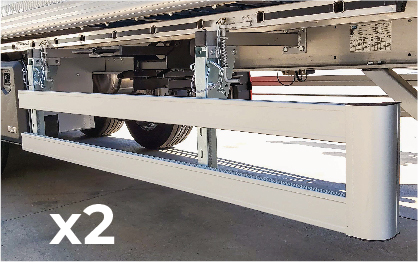

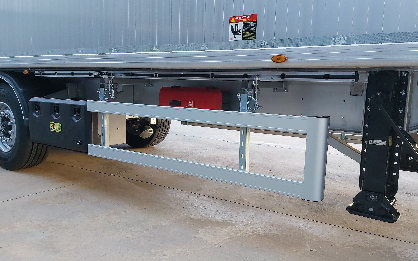

HP5-1.14 Drop side lateral under-run protections with anodised aluminium bars. *

STANDARD EQUIPMENT

HP4-1.15 One (1) 1.000 mm tools drawer in PVC. One (1) water tank with soap dispenser in PVC. Two (2) empty drawers of fire extinguishers in PVC, on configuration A1, B1, A2 or B2. *

STANDARD EQUIPMENT

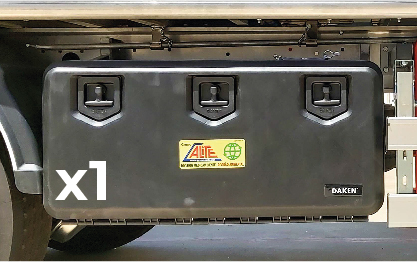

OP HP5-1.15_01 Add plastic toolbox 1.000 mm with brackets (C=250).

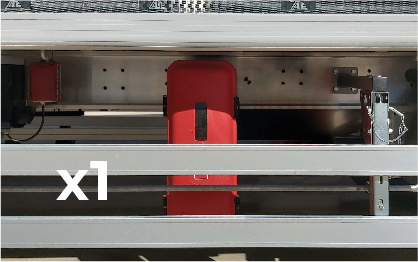

OP HP5-1.15_02 Add empty drawer of fire extinguishers with brackets, 6/9 kg

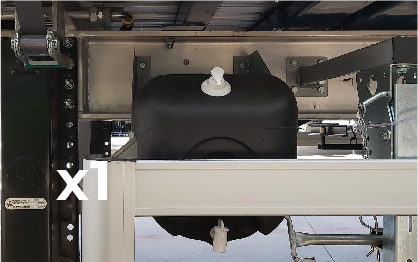

OP HP5-1.15_03 Add wáter tank soap dispenser in PVC with brackets

POSSIBLE MOUNTING CONFIGURATIONS. *

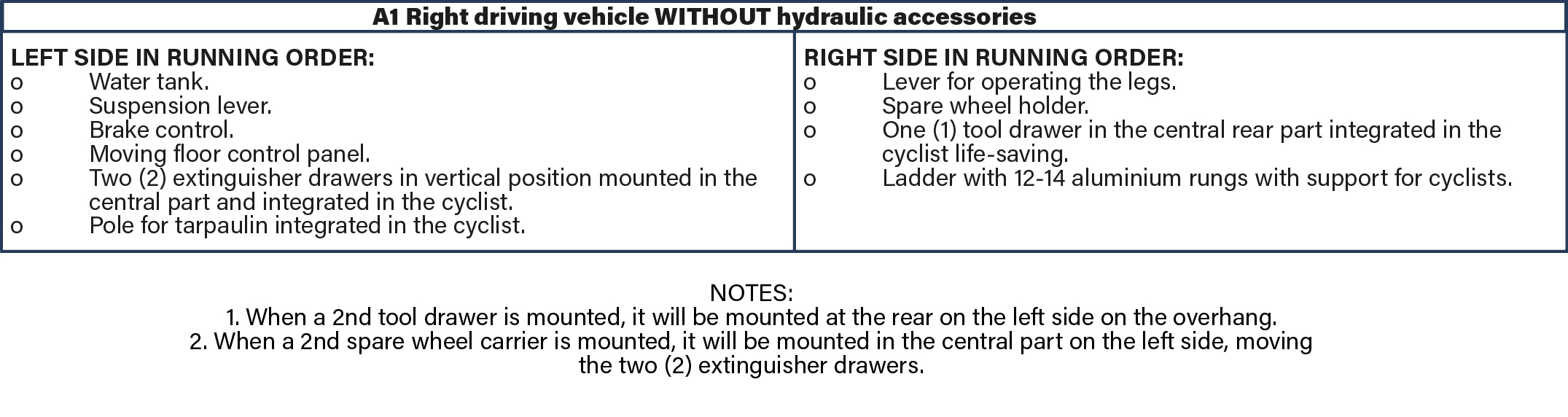

A1 RIGHT DRIVING VEHICLE

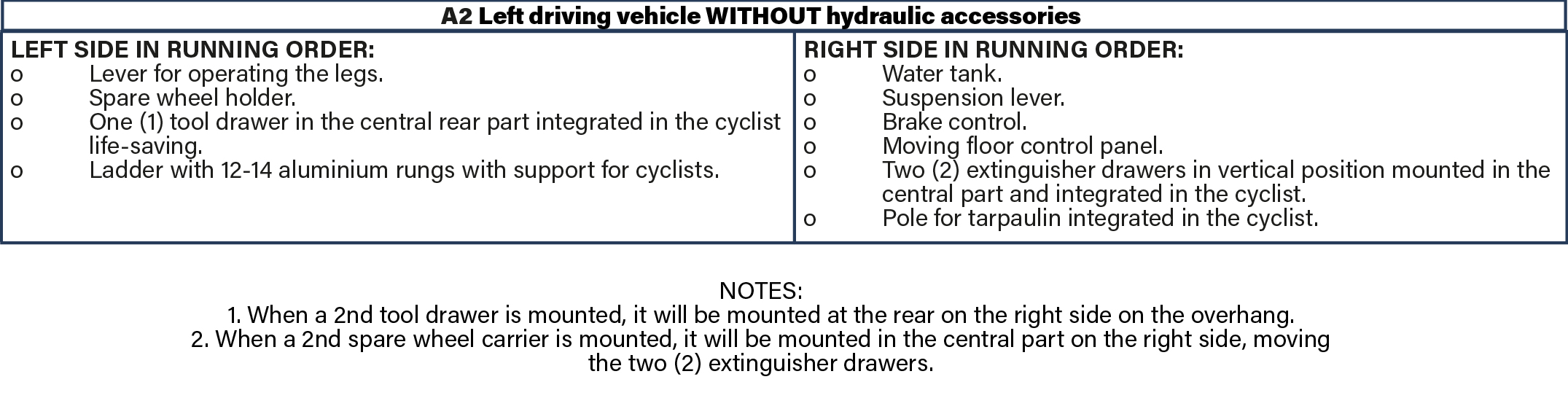

A2 LEFT DRIVING VEHICLE

A1 AND A2 CONFIGURATION WITHOUT HYDRAULIC ACCESSORIES; B1 AND B2 WITH HYDRAULIC ACCESSORIES, MORE INFORMATION AT TECHNICAL SHEETS

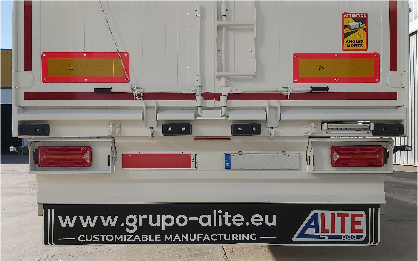

HP5-1.16 Lightening mechanism and light signals according to the Regulation 48 with Aspöck Ecoled II rear lights Led markers. Folding protections for the lights in aluminium integrated in the rear of the vehicle. *

STANDARD EQUIPMENT

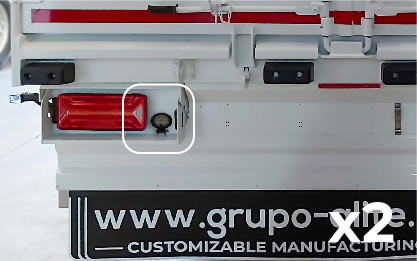

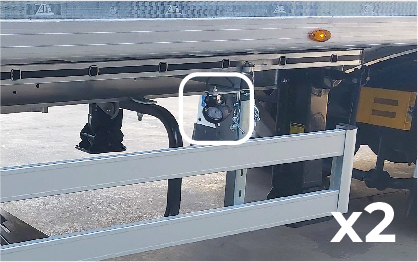

OP HP5-1.16_01 Add two (2) working rear light led reverse gear + selector.
OP HP5-1.16_02 Add two (2) led work headlights in central part on each side under the front safety support + reverse selector.

HP5-1.17 Chassis finished in non-anodised raw aluminium. *

STANDARD EQUIPMENT
OP HP5-1.17_01 Imp. epoxy finish + acrylic water paint RAL.

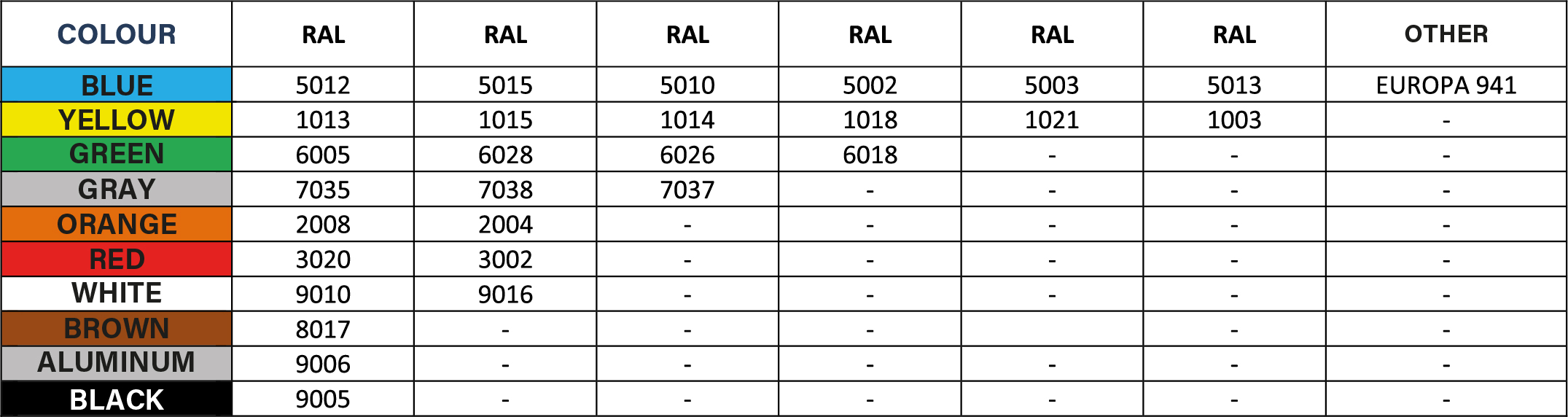

RAL Colour

You can choose the color in more detail later, if you know the RAL color name please state it, if not, just tell us the color.

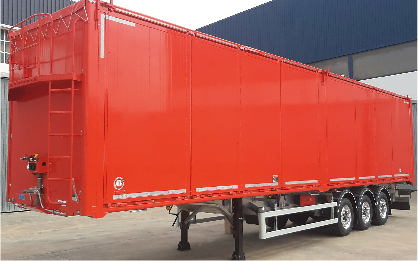

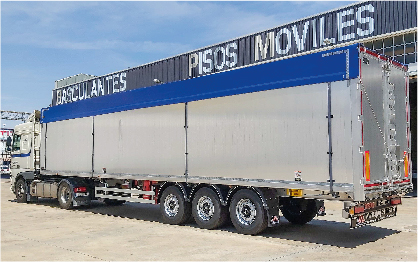

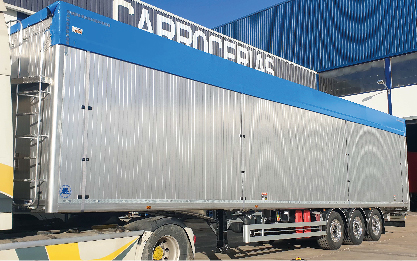

HP5-2 OPEN CONICAL BODYWORK INTEGRAL ALUMINUM (94,8 m³)

Configure the body of your vehicle

HP5-2.1 Integral aluminium fixed sides open bodywork construction. Outer dimensions: 13.650 mm (length) x 2.550 mm (width) and 2.730 / 2.930 mm of usable inner height. Fully usable volume of 94,8 m³. Maximum ground height 4.000 mm for fifth wheel locking at 1.120 mm. Useful interior length 13,500 mm. *

STANDARD EQUIPMENT (Straight inside corners)

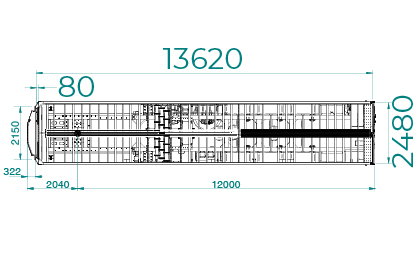

OP HP5-2.1_03 Change useful interior length 13,500 to 13,620 mm with internal chamfer 90 x 120 mm. PALLETIZABLE.

If you want to change the length or height of the vehicle change the numbers of the following options, in case of leaving the default values it will be counted as a standard value for the exterior.

LENGTH

Valor seleccionado: 13650

Box length reduction per linear meter. (-233.0 kg / m). (Standard value = 13,650 mm)

FRONT INSIDE HEIGHT

Valor seleccionado: 2730

REAR INTERIOR HEIGHT + 200 mm FROM THE SELECTED VALUE.
Standard value: front interior height = 2730 mm / rear interior height = 2930 mm
Box height variation per linear meter. (± 442 kg / m).

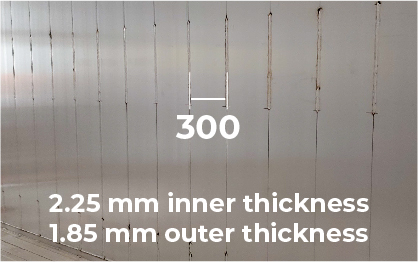

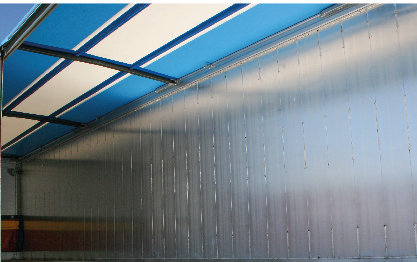

HP5-2.2 AL6005 T6 Alloy aluminium panels with tongue-and-groove joint system boards. 300 x 30 x 2,25 / 1,85 (width x thickness x inner / outer thickness). *

STANDARD EQUIPMENT

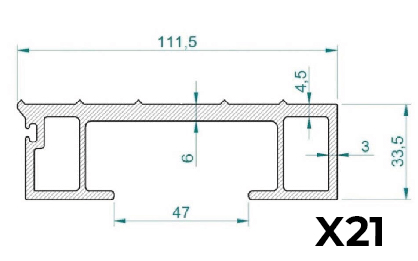

HP5-2.3 Twenty-one (21) aluminium blades (112 mm) ALITE HEAVY DUTY hydraulic mobile floor system in aluminium AL6082 T6 (standard 6 mm + 1,5 mm blades). Mounting of 735 slides per unit on aluminium tube 25,4 x 25,4 x 2 mm. *

STANDARD EQUIPMENT

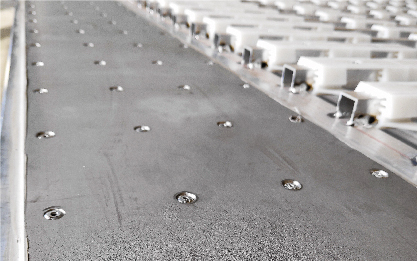

OP HP5-2.3_04 Change nylon plate at the back underneath the floor for 4 mm stainless steel plate. (+23,5 kg).

HP5-2.4 Lower band of curved type reinforced in aluminium AL6082 T6.

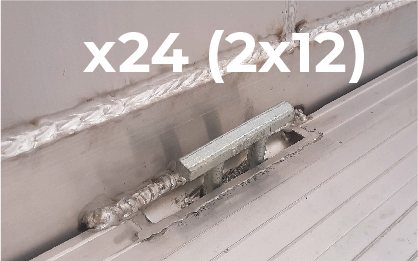

OP HP5-2.4_01 Add twelve (12) equidistant rings inserted in every lateral. Total 24 units. Rings according to EN12640, 3000 daN.

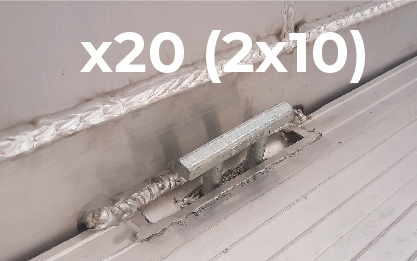

OP HP5-2.4_02 Add ten (10) equidistant rings inserted in every lateral. Total 20 units. Rings according to EN12640, 3000 daN.

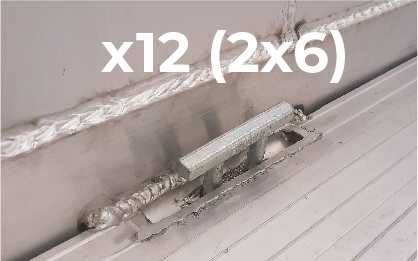

OP HP5-2.4_03 Add six (6) equidistant rings inserted in every lateral. Total 12 units. Rings according to EN12640, 3000 daN.

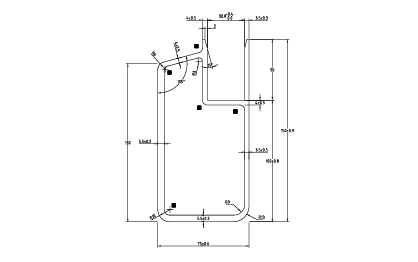

HP5-2.5 Upper lightened profile for closing handrail withouth integrated rail in AL6082 T6. *

STANDARD EQUIPMENT

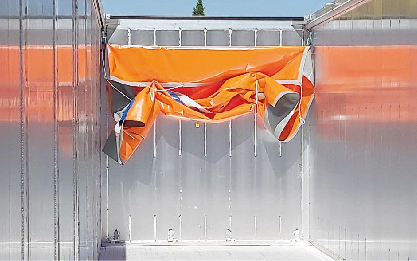

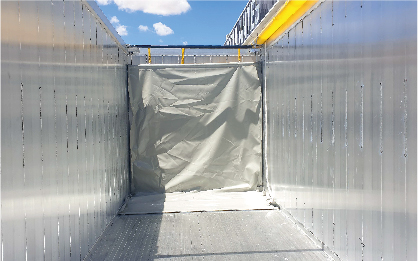

HP5-2.6 Sliding sweeper tarpaulin set up on a bar with two stainless steel pulleys with dismountable bearing. *

STANDARD EQUIPMENT

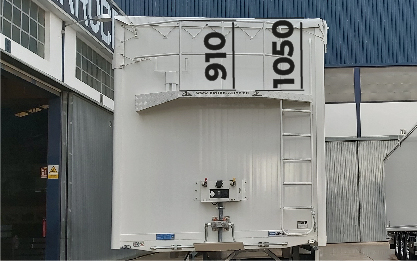

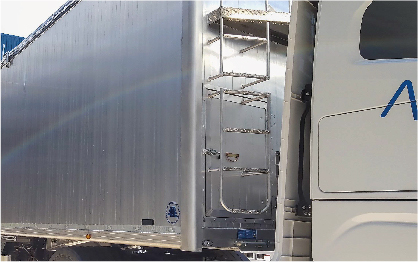

HP5-2.7 Full height fixed front in aluminium with catwalk at 1,050 mm from the handrail and with maximum dimensions according to Regulations. Access ladder on the left side in running order. 910 mm high railing. *

STANDARD EQUIPMENT

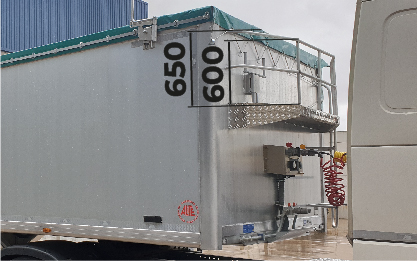

OP HP5-2.7_04 Runway at 650 mm from the front of the maximum dimensions according to regulations.

HP5-2.7 Full height fixed front in aluminium with catwalk at 1.050 mm from the handrail and with maximum dimensions according to Regulations. Access ladder on the left side in running order. 910 mm high railing. 2

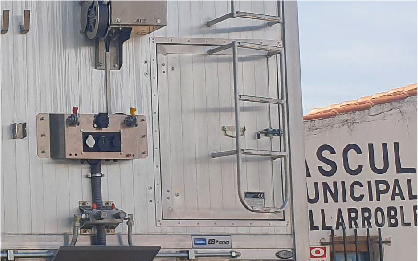

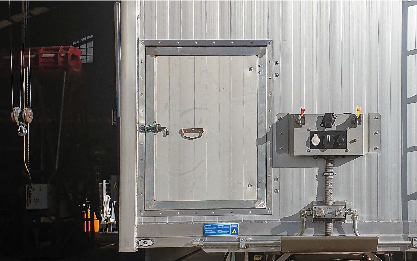

OP HP5-2.7_01 Add front access door AL. 1.000x800 mm right lat. in running order.
OP HP5-2.7_02 Add front access door AL. 1.000x800 mm left lat. in running order.
OP HP5-2.7_03 Change position ladder right side order run.

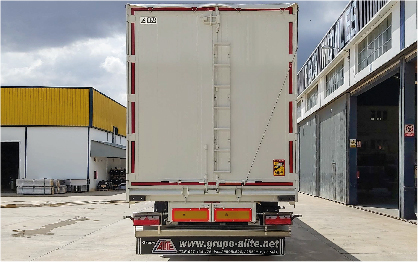

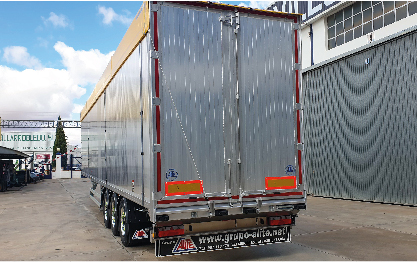

HP5-2.8 Rear door with 2 parts without upper crossbar and with closing system with central espagnolette with double fastening. Open bodywork closing ironworks integrated in the pillars profiles made of AISI 304b stainless steel. Aluminium ladder on the right door side. *

STANDARD EQUIPMENT
OP HP5-2.8_05 Remove staircase integrated aluminium right sheet.

HP5-2.8 Rear door with 2 parts without upper crossbar and with closing system with central espagnolette with double fastening. Open bodywork closing ironworks integrated in the pillars profiles made of AISI 304b stainless steel. Aluminium ladder on the right door side. 2

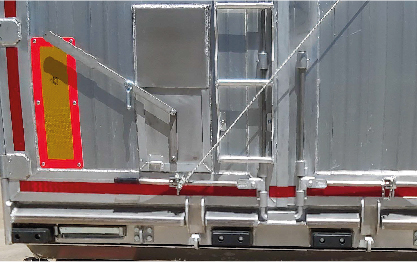

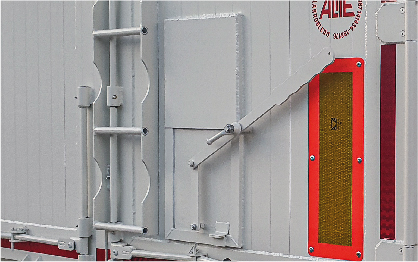

OP HP5-2.8_01 Add stainless manual hatch. On right door.
OP HP5-2.8_02 Add stainless manual hatch. On left door.

HP5-2.8 Rear door with 2 parts without upper crossbar and with closing system with central espagnolette with double fastening. Open bodywork closing ironworks integrated in the pillars profiles made of AISI 304b stainless steel. Aluminium ladder on the right door side. 3

OP HP5-2.8_04 Add assembly rear fixed doors welded AL 160x80x8 AL6082 T6.

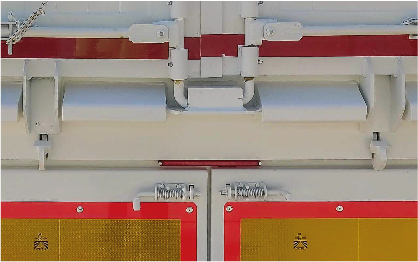

HP5-2.9 Additional pneumatic closing system for rear doors with manual activation with button in the chassis. *

STANDARD EQUIPMENT

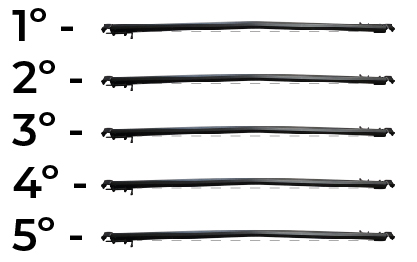

HP5-2.10 System 5 arches in black anodized ALITE extrusion aluminium tube of section 60x50 mm, quality AL6082 T6. Lightened version. *

STANDARD EQUIPMENT

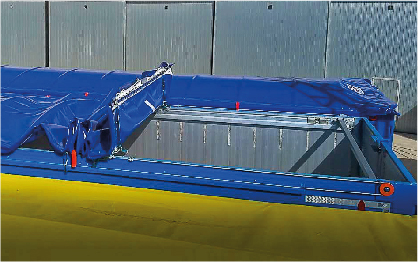

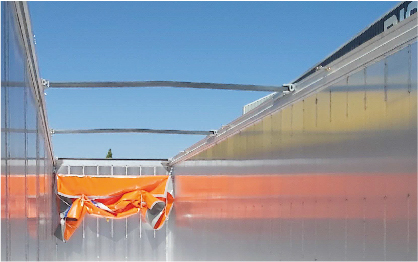

HP5-2.11 Tin opener roll up 680 g/m² canvas top, with fall of 600 mm on the left side in running order and fixed on the right side. Colour according to RAL guide. Four (4) tensing ratchets on the left side and two (2) on the right side in running order for the tarpaulin belts. Four (4) ALITE aluminium swing-away spring-loaded bayonets mounted on the right side in running order. Two (2) inner reinforcing tubes in the centre at 550 mm between them, 3/4” galvanized iron pipe. *

STANDARD EQUIPMENT
OP HP5-2.11_03 Change canvas drop right side and fixed left side in running order.
OP HP5-2.11_01 Remove roof tarpaulin. (-135,0 kg).

HP5-2.11 Tin opener roll up 680 g/m² canvas top, with fall of 600 mm on the left side in running order and fixed on the right side. Colour according to RAL guide. Four (4) tensing ratchets on the left side and two (2) on the right side in running order for the tarpaulin belts. Four (4) ALITE aluminium swing-away spring-loaded bayonets mounted on the right side in running order. Two (2) inner reinforcing tubes in the centre at 550 mm between them, 3/4” galvanized iron pipe. 2

OP HP5-2.11_02 STANDARD EQUIPMENT: Add canvas colour RAL + white centre stripe.
OP HP5-2.11_04 Add roll-up can opener mesh.

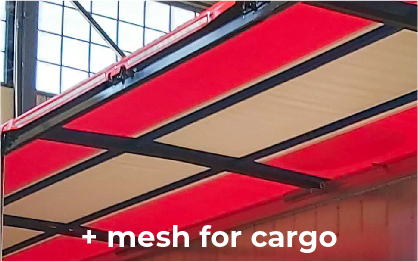

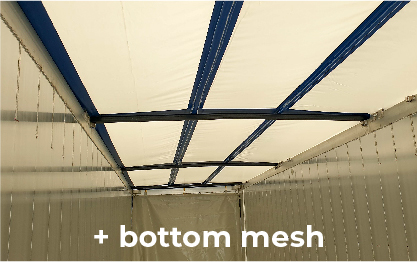

OP HP5-2.11_05 Add mesh to cover load 15.000 x 5.000 mm + hooks to welded on band.

HP5-2.11 Tin opener roll up 680 g/m² canvas top, with fall of 600 mm on the left side in running order and fixed on the right side. Colour according to RAL guide. Four (4) tensing ratchets on the left side and two (2) on the right side in running order for the tarpaulin belts. Four (4) ALITE aluminium swing-away spring-loaded bayonets mounted on the right side in running order. Two (2) inner reinforcing tubes in the centre at 550 mm between them, 3/4” galvanized iron pipe. 3

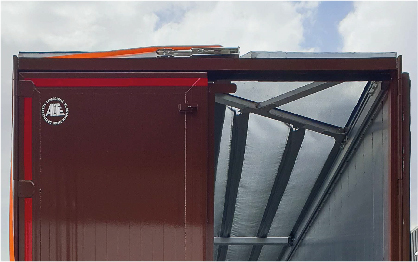

OP HP5-2.11_06 Changing canvas roof for Cramaro cabriole type C manual + elec + radio. (+155,0 kg).

RAL Colour

You can choose the color in more detail later, if you know the RAL color name please state it, if not, just tell us the color

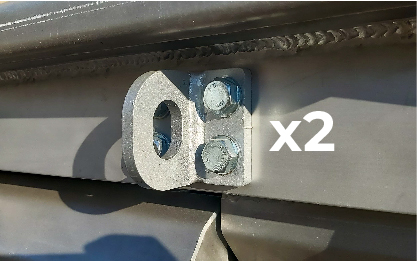

HP5-2.12 Two (2) pulling rings at the rear *

STANDARD EQUIPMENT

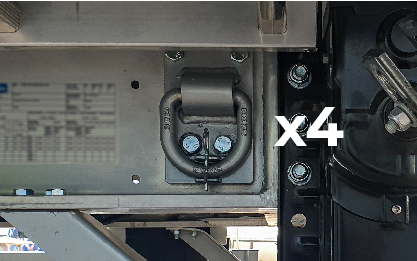

OP HP5-2.12_01 Add four (4) rings to the chassis for the mooring of the vehicle on board.

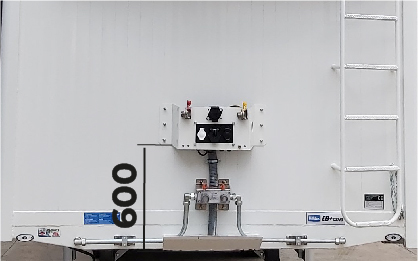

HP5-2.13 Electrical and pneumatic connections 600 mm from the coupling pivot plate. Watertight box with electrical connectors ISO 3731 (24 N) + ISO 1185 (24 s) + ISO 12098 (15 P) and red and yellow ISO 1728 tires. *

STANDARD EQUIPMENT

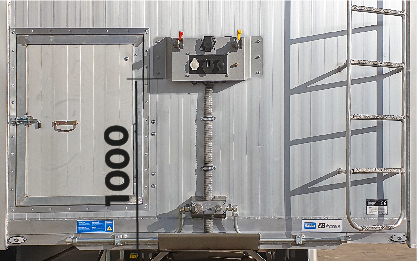

OP HP5-2.13_01 Electrical connections height change to 1.000 mm.

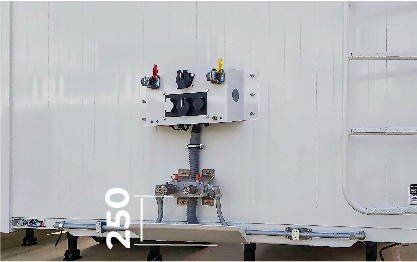

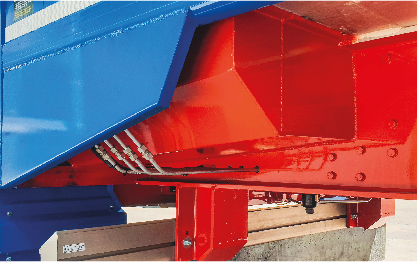

HP5-2.14 Hydraulic connections 250 mm from the coupling pivot plate with aluminium safety valve against wrong connections ALITE AL-BL101. Rigid pressure tube DIN 2391 with sections 22x2,5 mm in pressure (WP 250 bar) and 28x2,0 mm in return (WP 200 bar). *

STANDARD EQUIPMENT

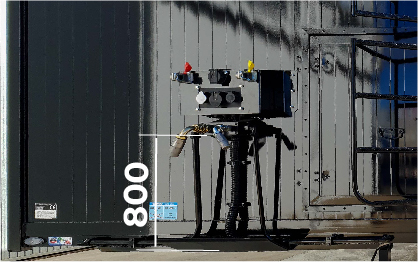

OP HP5-2.14_01 Electrical connections height change to 800 mm.

HP5-2.15 One (1) aluminium ladder with 12 steps with holder on the under-run protections. *

STANDARD EQUIPMENT

HP5-2.16 Drawer finished in non-anodised raw aluminium. *

STANDARD EQUIPMENT
OP HP5-2.16_01 Imp. epoxy finish + acrylic water p. RAL.

RAL Colour

You can choose the color in more detail later, if you know the RAL color name please state it, if not, just tell us the color.
