OPEN
The ALITE family of OPEN moving floor semi trailers is mainly designed to be able to load and transport any type of goods with the cargo access of a platform.
With a continuous double T aluminium extrusion chassis, the OPEN family is available in three models depending on the type of bodywork: Semitauliner, Clear and Naked.
The Semitauliner model is fitted with a semi-canopy type body with folding sides, sliding pillars and a lifting roof. The Clear model has a fixed open box with folding sides and removable pillars and supplements. Finally, the Naked model offers an open platform with a movable floor and the lowest possible height to the ground.
SO THAT YOU CAN TRANSPORT ANY GOODS
The ALITE semi-trailer with a walking floor and open box body with folding
and removable sides that allows you to access cargo like a platform.
SO THAT YOU CAN TRANSPORT ANY GOODS
The ALITE semi-trailer with a walking floor and open box body with folding
and removable sides that allows you to access cargo like a platform.
OPEN VEHICLE KEY FEATURES
VERSATILITY
THE OPEN DE ALITE FAMILY IS SO VERSATILE THAT IT GUARANTEES YOU MORE
BIG VOLUME
LIGHT
ALITE IS THE MANUFACTURER THAT OFFERS YOU THE LOWEST COST OF OPERATION
RESISTANT
YOUR WALKING FLOOR WITH A LONG USEFUL LIFE
RELIABLE

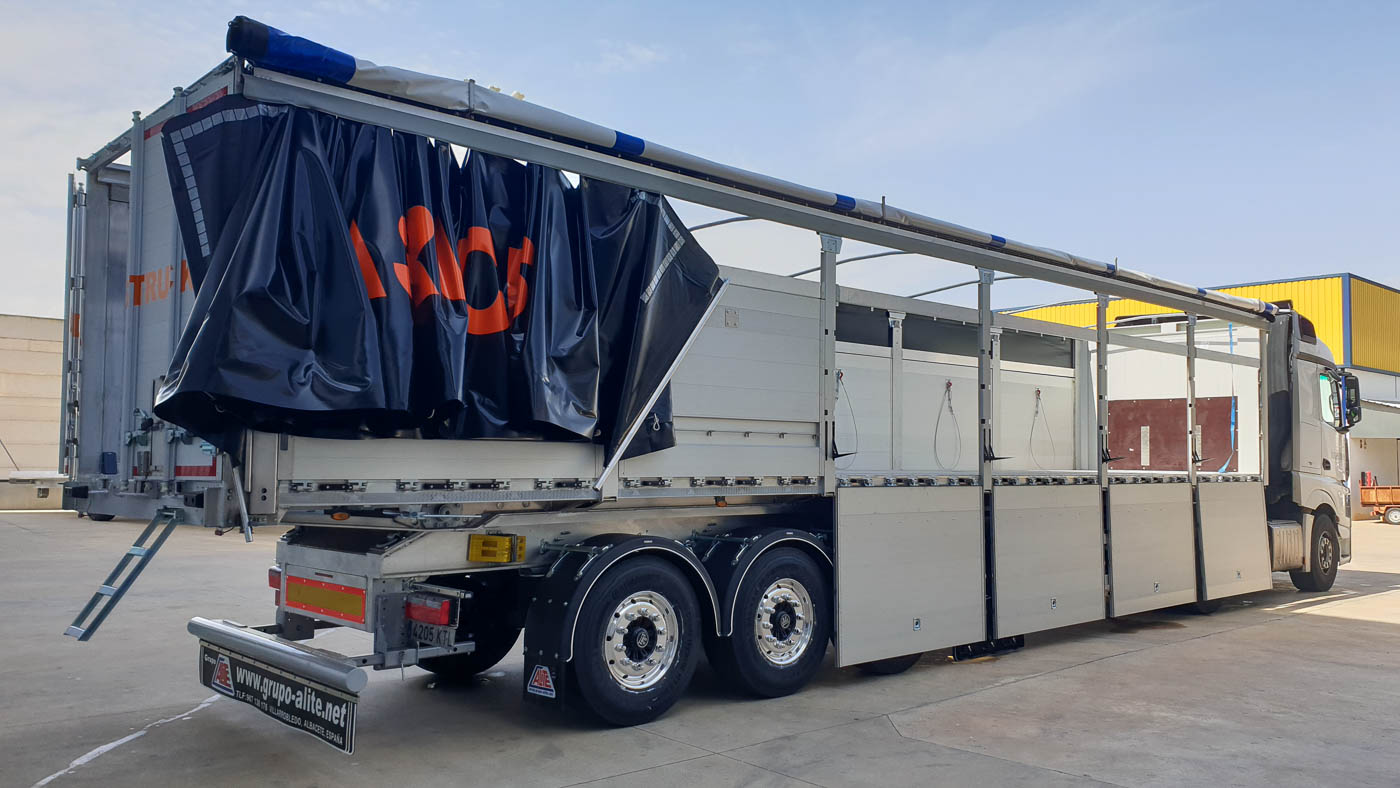

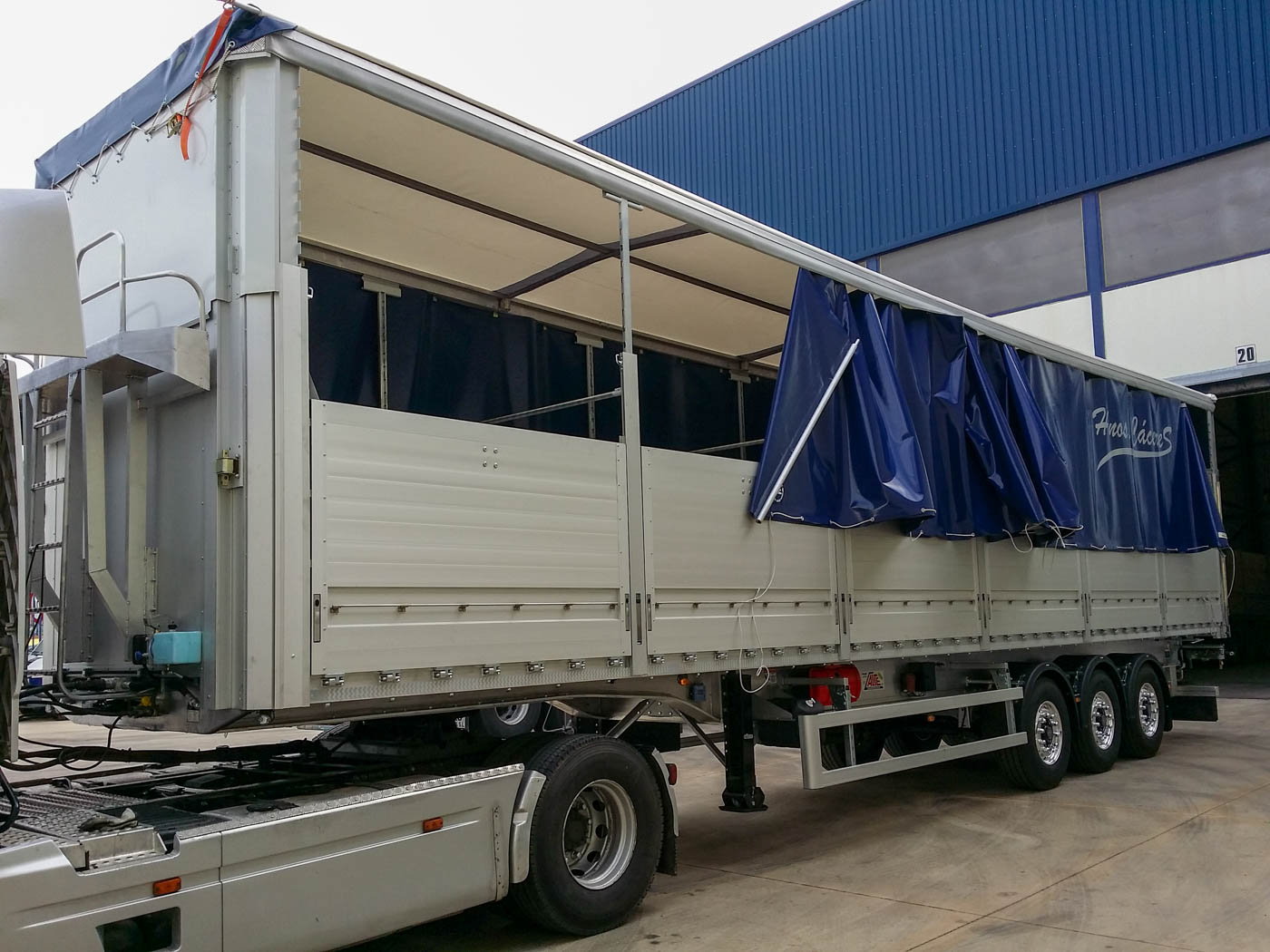

OPEN SEMITAULINER
YOUR VERSATILE ALITE WALKING FLOOR SEMI-WITHE BOX
YOUR VERSATILE ALITE WALKING FLOOR SEMI-WITHE BOX

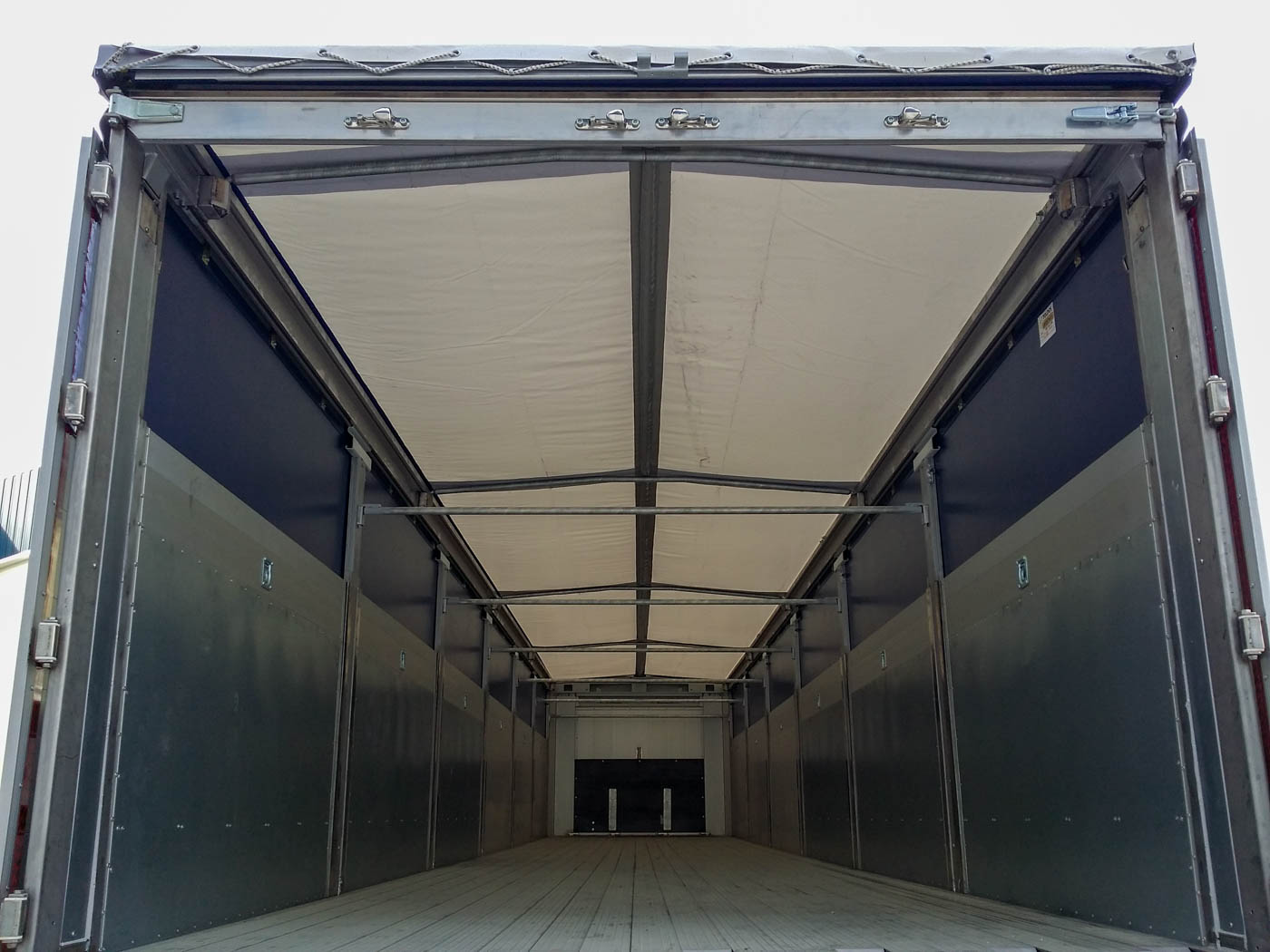

Open box construction in half-canvas with a free lateral passage height of 2200 mm and a maximum ceiling elevation of +800 mm manually or hydropneumatically. Six (6) anodized aluminum side panels with a height of 1,300 mm per side. Ten (10) sliding aluminum pillars with three (3) locking
claws for the side doors. Curved three-track aluminum top profile for the side curtains, roof and sliding pillars. Standard manual roll-up roof with drop on one side and fixed on the other.
You will be able to configure the vehicle with the multiple options available to adapt it to your purpose according to your preferences. Our proposal starts from a base vehicle with several selectable options. We are a flexible factory with full autonomy in the production of all components. You can see the complete information with ALL the possibilities in its technical data sheet.
CHOOSE THE MODEL THAT BEST SUITS YOUR TRACTOR HEAD WITH
WHEELS ON THE SEMI-TRAILER 385/65 R22.5 OPTIONAL 385/55 R22.5

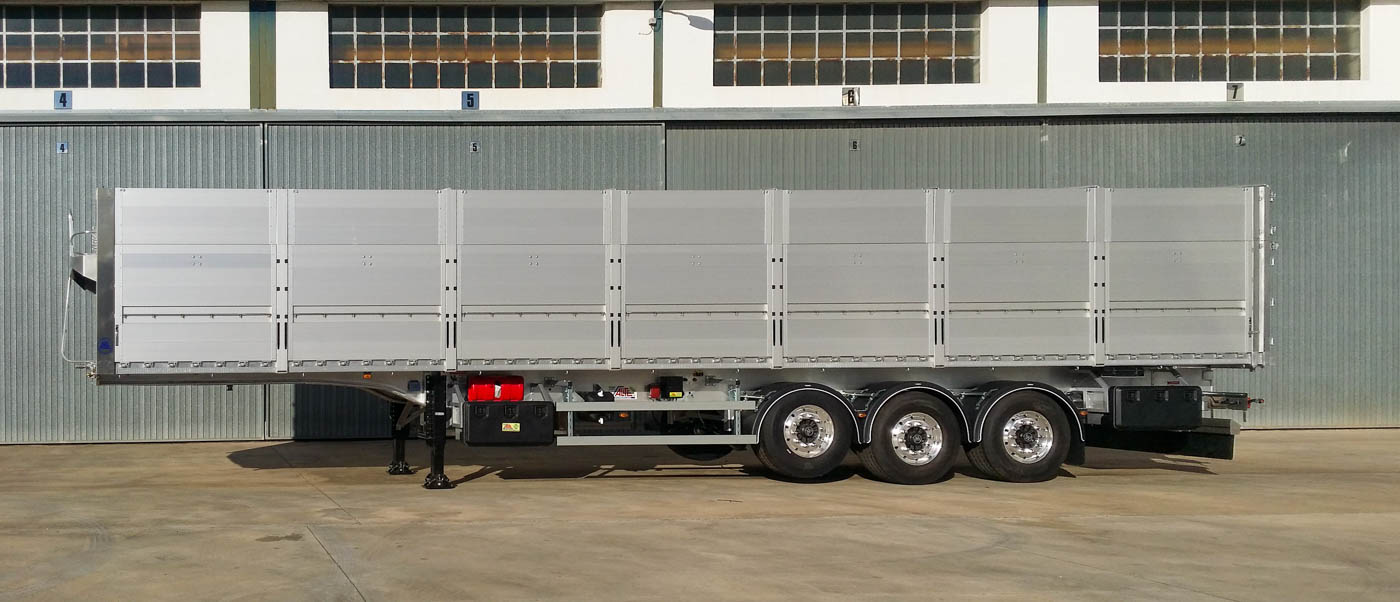

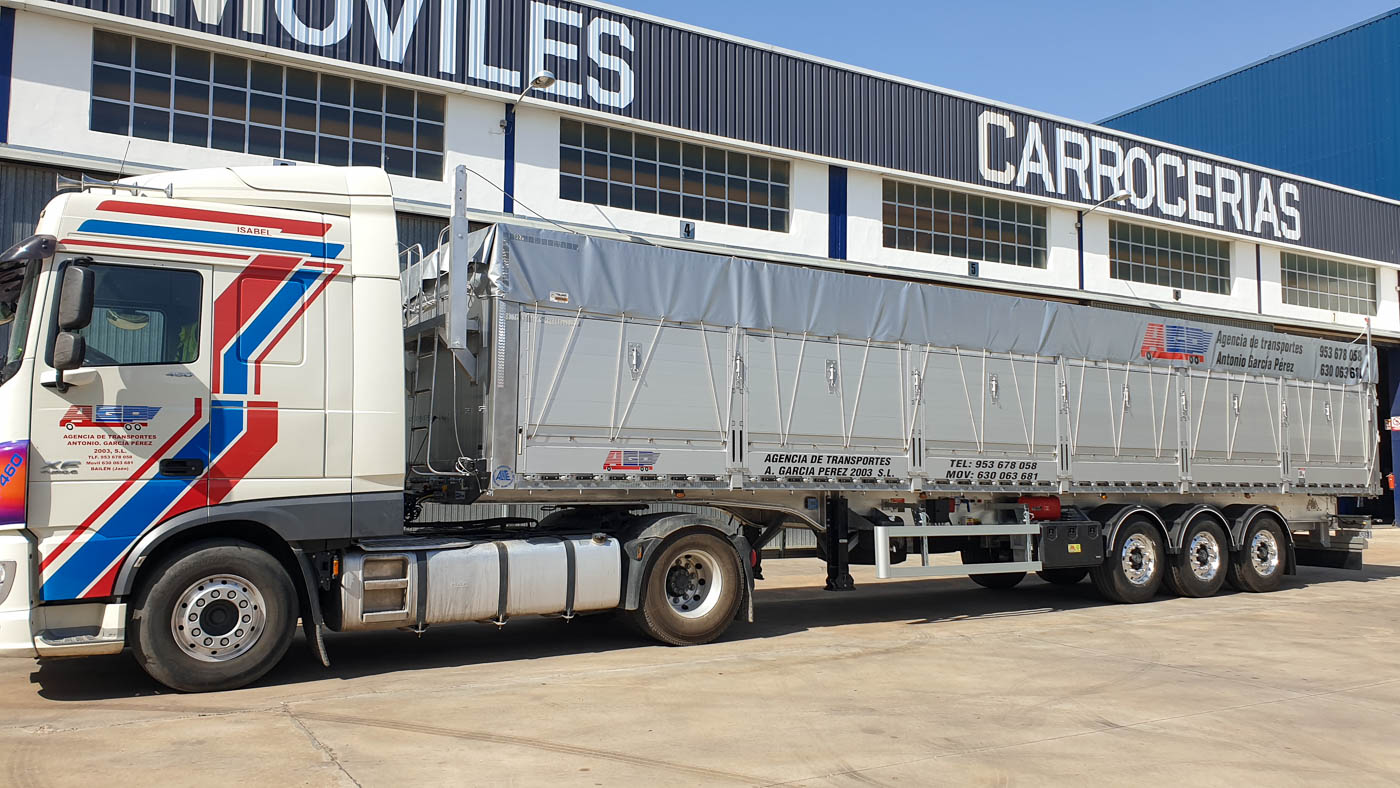

OPEN CLEAR
YOUR OPEN BOX WITH FOLDING SIDES AND WALKING FLOOR ALITE CONVERTIBLE INTO A SMOOTH PLATFORM
YOUR OPEN BOX WITH FOLDING SIDES AND WALKING FLOOR ALITE CONVERTIBLE INTO A SMOOTH PLATFORM
Our design, manufacture and total control of the vehicle’s manufacture allows us to offer you the greatest possibilities for personalisation; according to the type of load, use and preferences. This model of the OPEN family has a walking floor platform with folding aluminum sides and removable supplements. All the elements of the rear and side enclosures are removable with the possibility of leaving the vehicle in a platform configuration.
CHOOSE THE MODEL THAT BEST SUITS YOUR TRACTOR HEAD WITH
WHEELS ON THE SEMI-TRAILER 385/65 R22.5 OPTIONAL 385/55 R22.5

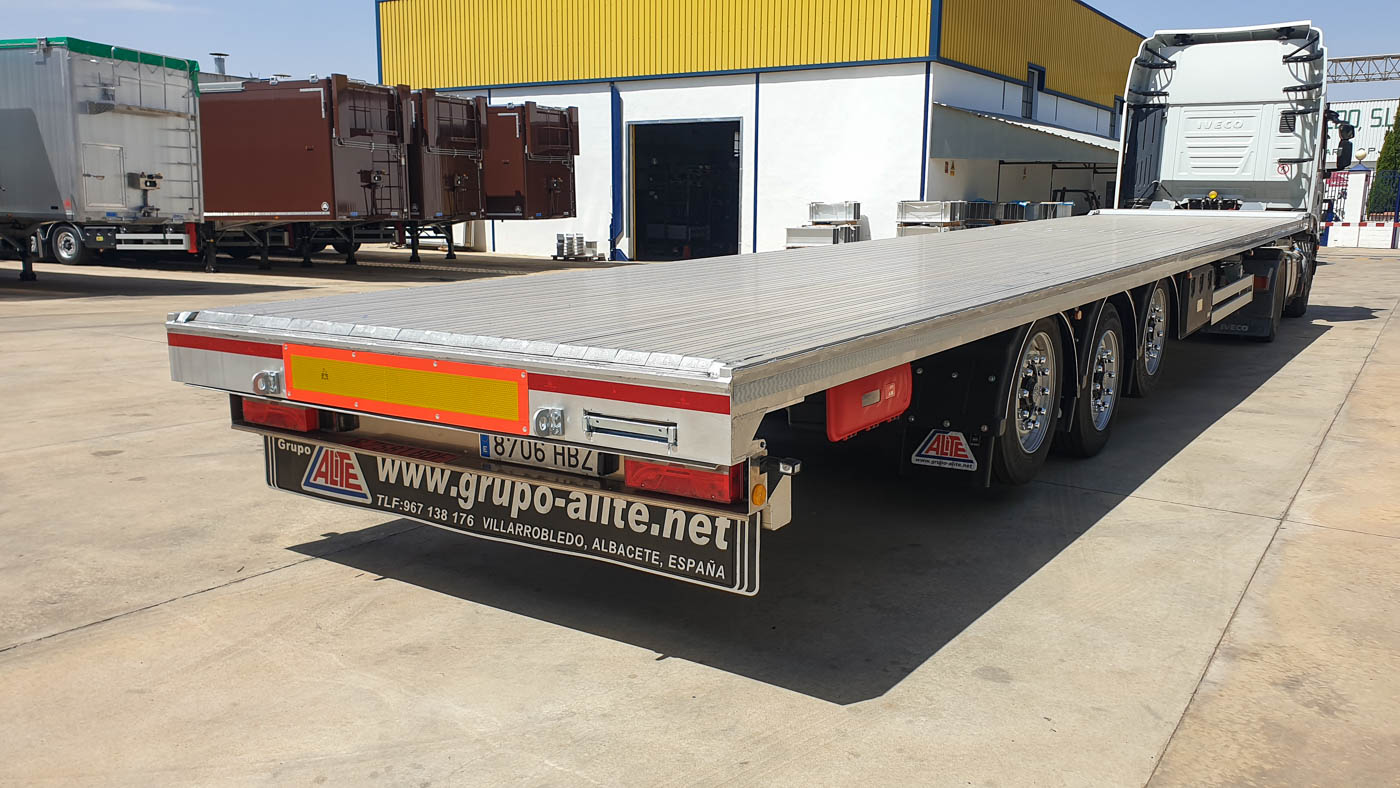

OPEN NAKED
YOUR PLATFORM WITH A WALKING FLOOR ALITE WITH
THE LOWEST HEIGHT TO THE GROUND
YOUR PLATFORM WITH A WALKING FLOOR ALITE WITH THE LOWEST HEIGHT TO THE GROUND
Our design, manufacture and total control of the vehicle’s manufacture allows us to offer you the greatest possibilities for personalisation;
according to the type of load, use and preferences. This model of the OPEN family has an open moving floor platform.
The OPEN NAKED model has a continuous chassis with a 120 mm high neck for a fifth wheel height of your Tractor head from 1.000 to 1.050 mm. Maximum load on the pivot 12 tonne coupling (KP).
WE OFFER YOU THE HIGHEST LOAD CAPACITY. HEIGHT OF THE FRONT / BACK PLATFORM: 1,250 / 970 mm (*)
Integral aluminum construction, movable floor platform type of dimensions 13,600 x 2,550 mm with a front folding base of 300 mm.
Manual folding front cover to extend the capacity of load and protect the sheets at the front.
NOTE (*): With a fifth wheel height of 1,000 mm and 355/50 R22.5 tyres.
You will be able to configure the vehicle with the multiple options available to adapt it to your purpose according to your preferences. Our proposal starts from a base vehicle with several selectable options. We are a flexible factory with full autonomy in the production of all components. You can see the complete information with ALL the possibilities in its technical data sheet.
CHOOSE THE MODEL THAT BEST SUITS YOUR TRACTOR HEAD WITH
WHEELS ON THE SEMI-TRAILER 385/65 R22.5 OPTIONAL 385/55 R22.5
COMPARATIVE
Note: All measurements in mm
(*): Value valid with 355/50 R22.5 tyres and height of 5th wheel 1000 mm
