HP – HIGH PERFORMANCE
The ALITE family of High Performance (HP) movable floor semi trailers is primarily designed for on-road use for long journeys thanks to its optimised design.
With a 250 mm high double T aluminium extrusion chassis for the entire range, the HP family is available in four versions, all with conical boxes. The HP range offers you a load volume from 91 to 99 m3, with a lightweight construction that maintains the reliability, resistance and durability values of ALITE brand vehicles.
For some versions, we also offer two models depending on the height and load capacity of the coupling pin.
To optimize your load capacity and go further

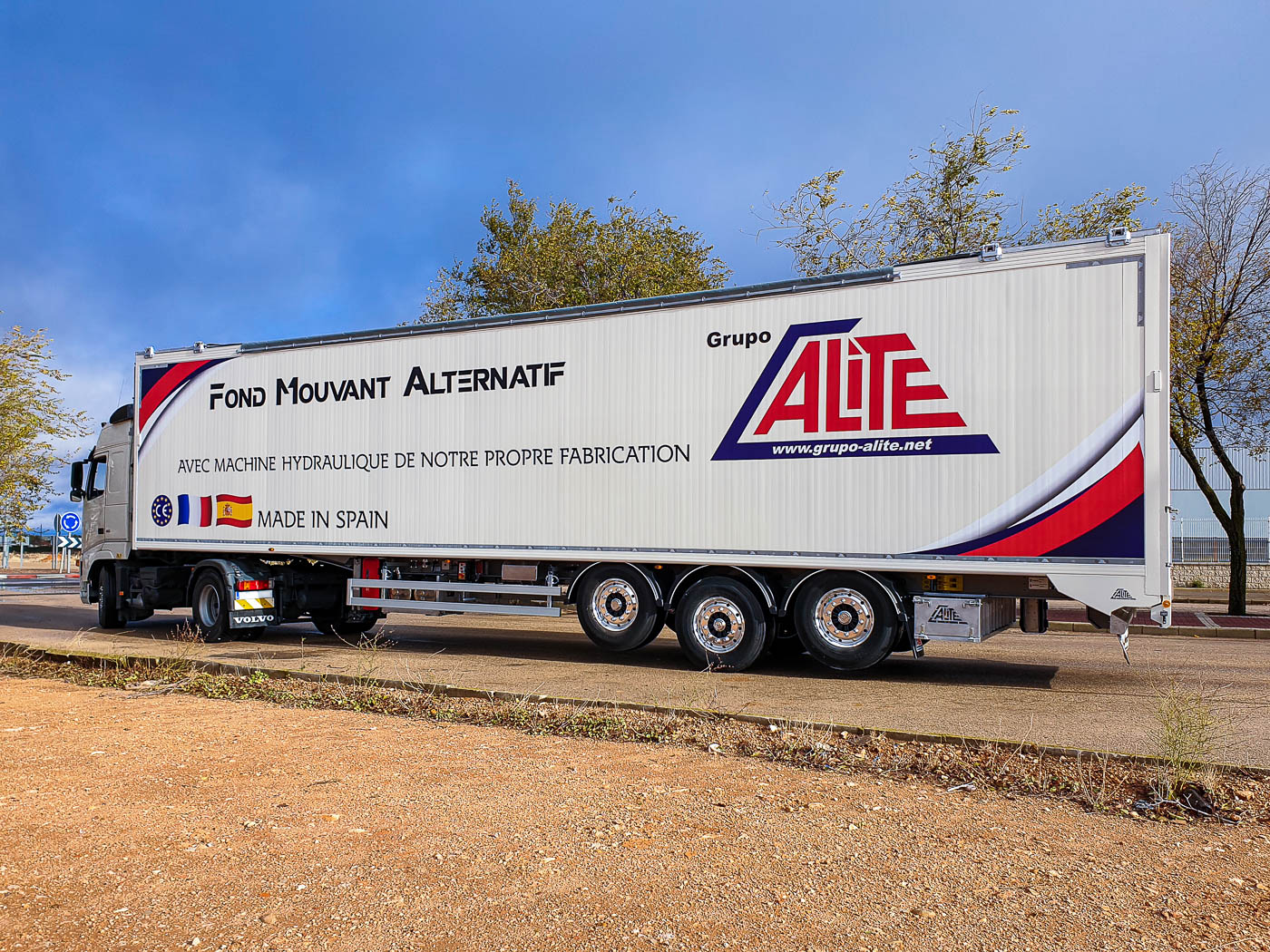

The ALITE semi-trailer with open body and walking floor
for on-road use (ON-ROAD) over long distances
To optimize your load capacity and go further
The ALITE semi-trailer with open body and walking floor
for on-road use (ON-ROAD) over long distances
HIGH PERFORMANCE VEHICLE KEY FEATURES
LARGE VOLUME
WE OFFER YOU THE LOWEST COST PER CUBIC METER TRANSPORTED.
STABLE
CLOSER TO YOU.
LIGHT
ALITE IS THE MANUFACTURER THAT OFFERS YOU THE LOWEST COST OF OPERATION.
RESISTANT
ALITE IS A SAFE INVESTMENT.
RELIABLE
YOUR WALKING FLOOR WITH THE LOWEST COST OF MAINTENANCE.

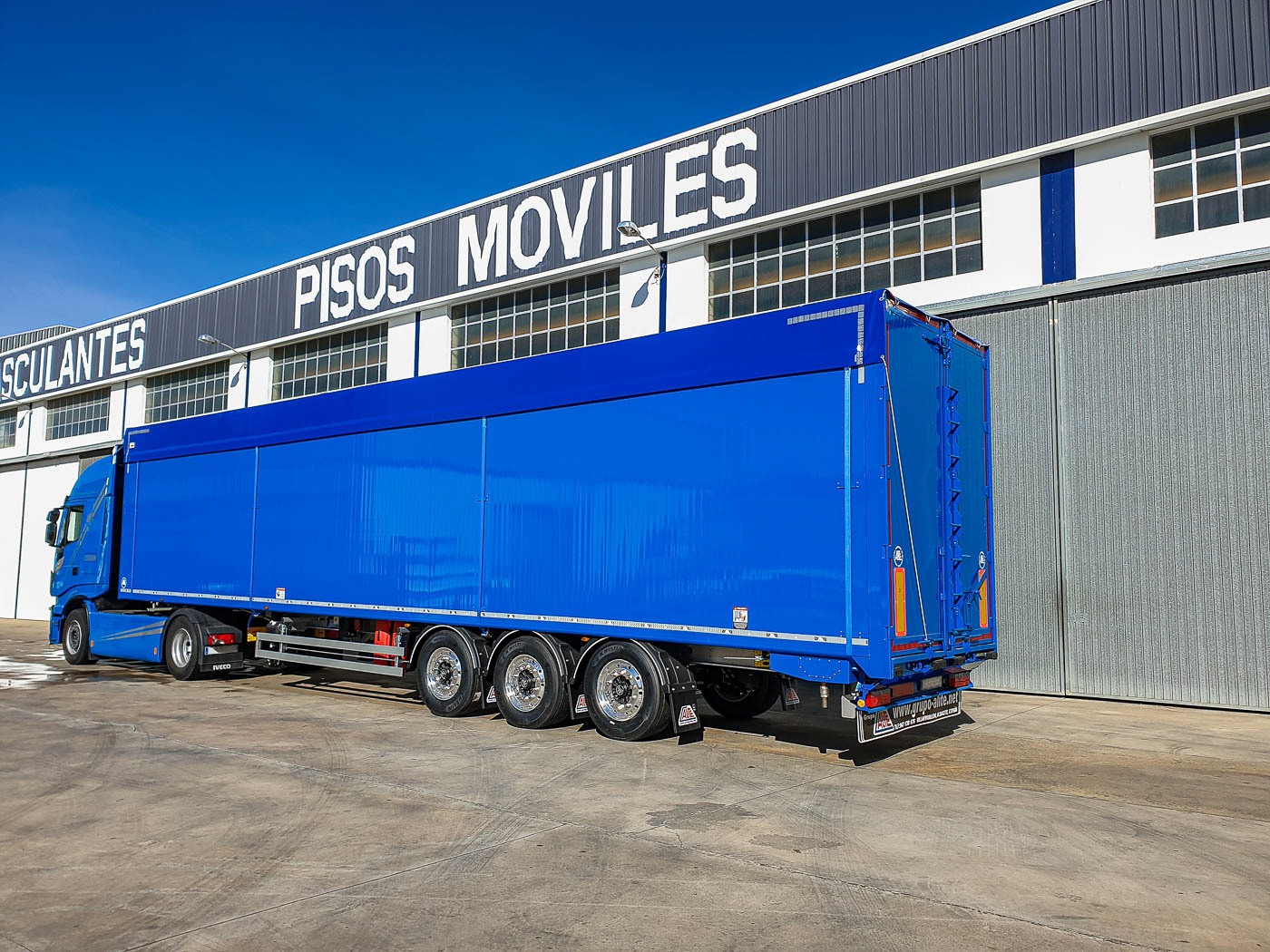

FAMILY HP CONICAL FULL
FOR DRY LOADS IN BULK AND / OR PALLETIZED.
AGRICULTURE, INDUSTRIAL, LIGHT WASTE SECTOR.
FOR DRY LOADS IN BULK AND / OR PALLETIZED. AGRICULTURE, INDUSTRIAL, LIGHT WASTE SECTOR.
The models of the Conical Full family mount the 385/55 R22.5 wheel and offer you the highest possible load volume thanks to their lowered chassis and the maximum conical shape of their bodywork.
You can configure the vehicle with the multiple options available to adapt it to your purpose according to your preferences. Our proposal starts from a base vehicle with various selectable options. We are a flexible factory with complete autonomy in the production of all components. You can see the complete information with ALL the possibilities in its technical sheet.
Here is a summary of the main characteristics of the models in this family.
MODELS
HP CONICAL FULL KP-LOW
For a fifth wheel height of your tractor unit from 1,100 to 1,150 mm. With a maximum load on the coupling pin (KP) of 12 tn. Maximum volume of 95 m³ at 4,000 mm from the ground with KP = 1,120 mm.
HP CONICAL FULL KP-HIGH
For a fifth wheel height of your tractor unit from 1,200 to 1,250 mm. With a maximum load on the coupling pin (KP) of 16 tn. Maximum volume of 93 m³ at 4,000 mm from the ground with KP = 1,200 mm.
CHOOSE THE MODEL THAT BEST FITS YOUR TRACTOR HEAD
WITH WHEELS ON THE 385/55 R22.5 SEMI-TRAILER.

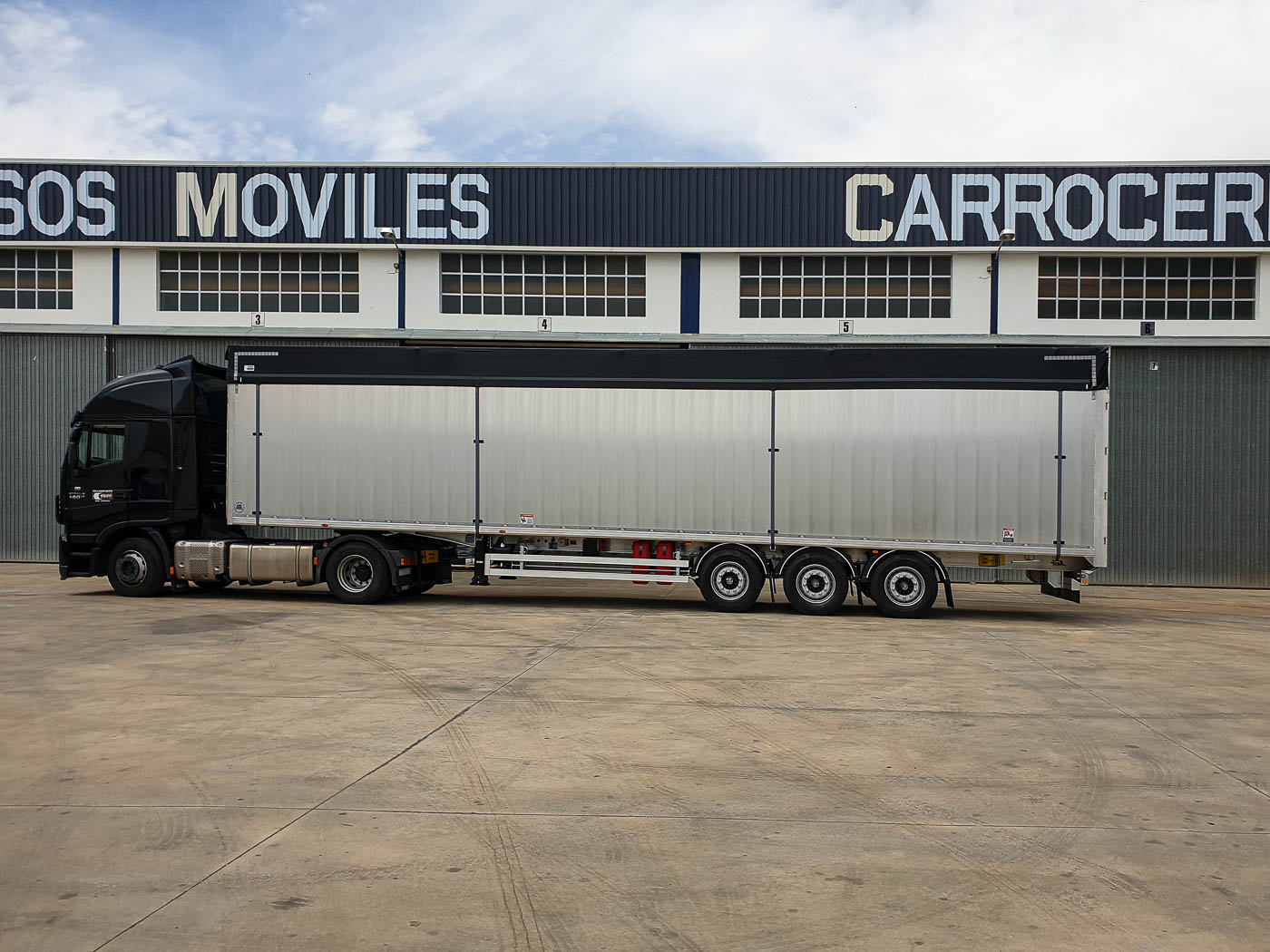

FAMILY HP CONICAL HALF
FOR DRY LOADS IN BULK AND / OR PALLETIZED.
AGRICULTURE, INDUSTRIAL, LIGHT WASTE SECTOR.
FOR DRY LOADS IN BULK AND / OR PALLETIZED. AGRICULTURE, INDUSTRIAL, LIGHT WASTE SECTOR.
The models of the Conical Half family mount the 385/65 R22.5 wheel and offer you the highest possible load volume thanks to its lowered chassis andthe maximum conical shape of its body.
You can configure the vehicle with the multiple options available to adapt it to your purpose according to your preferences. Our proposal starts from a base vehicle with various selectable options. We are a flexible factory with complete autonomy in the production of all components. You can see the complete information with ALL the possibilities in its technical sheet.
Here is a summary of the main characteristics of the models in this family.
MODELS
HP CONICAL HALF KP-LOW
For a fifth wheel height of your tractor unit from 1,100 to 1,150 mm. With a maximum load on the coupling pin (KP) of 12 tn. Maximum volume of 94 m³ at 4,000 mm from the ground with KP = 1,120 mm.
HP CONICAL HALF KP-HIGH
For a fifth wheel height of your tractor unit from 1,200 to 1,250 mm. With a maximum load on the coupling pin (KP) of 16 tn. Maximum volume of 91 m³ at 4,000 mm from the ground with KP = 1,200 mm.
CHOOSE THE MODEL THAT BEST SUITS YOUR TRACTOR HEAD
WITH WHEELS ON THE 385/65 R22.5 SEMI-TRAILER

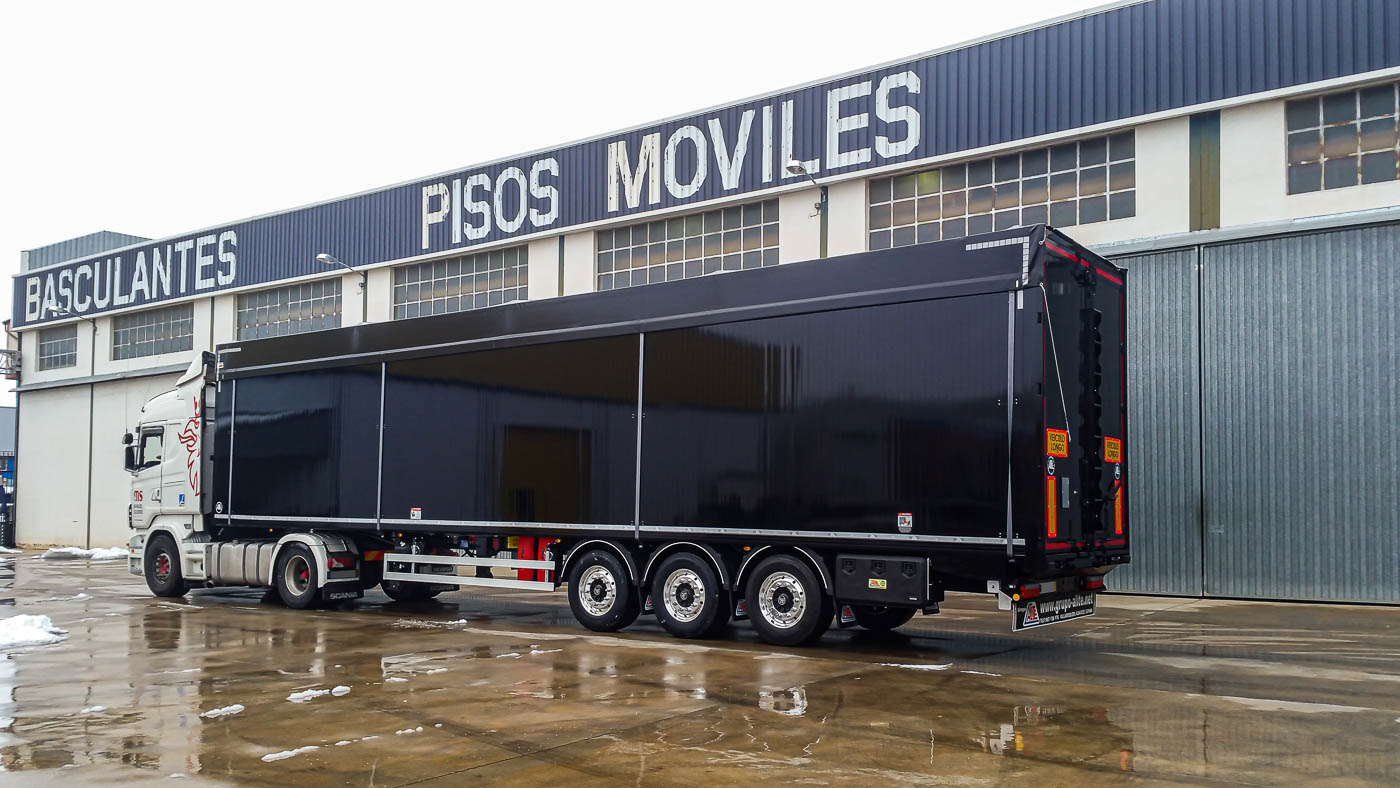

HP LIGHT
EMPTY WEIGHT 6.780 kg
EMPTY WEIGHT 6.780 kg
When the lowest curb weight is your priority for your vehicle selection, the HP Light model offers the lowest possible curb weight in the HP range with a lightweight construction and wheels with 385/55 R22.5 tires.
The HP Light model is the lightweight version of the entire HP range. Its optimized design and lightweight construction maintain the reliability, strength and durability values of ALITE brand vehicles with the lowest possible unladen weight.
- Aluminum support legs.
- Platform and box construction lightened.
- Equipment with 21 lightened 6 mm planks.
- Vehicle without accessories: tool drawers, water tank and fire extinguishers.
You can configure the vehicle with the multiple options available to adapt it to your purpose according to your preferences. Our proposal starts from a base vehicle with various selectable options. We are a flexible factory with complete autonomy in the production of all components. You can see the complete information with ALL the possibilities in its technical sheet.

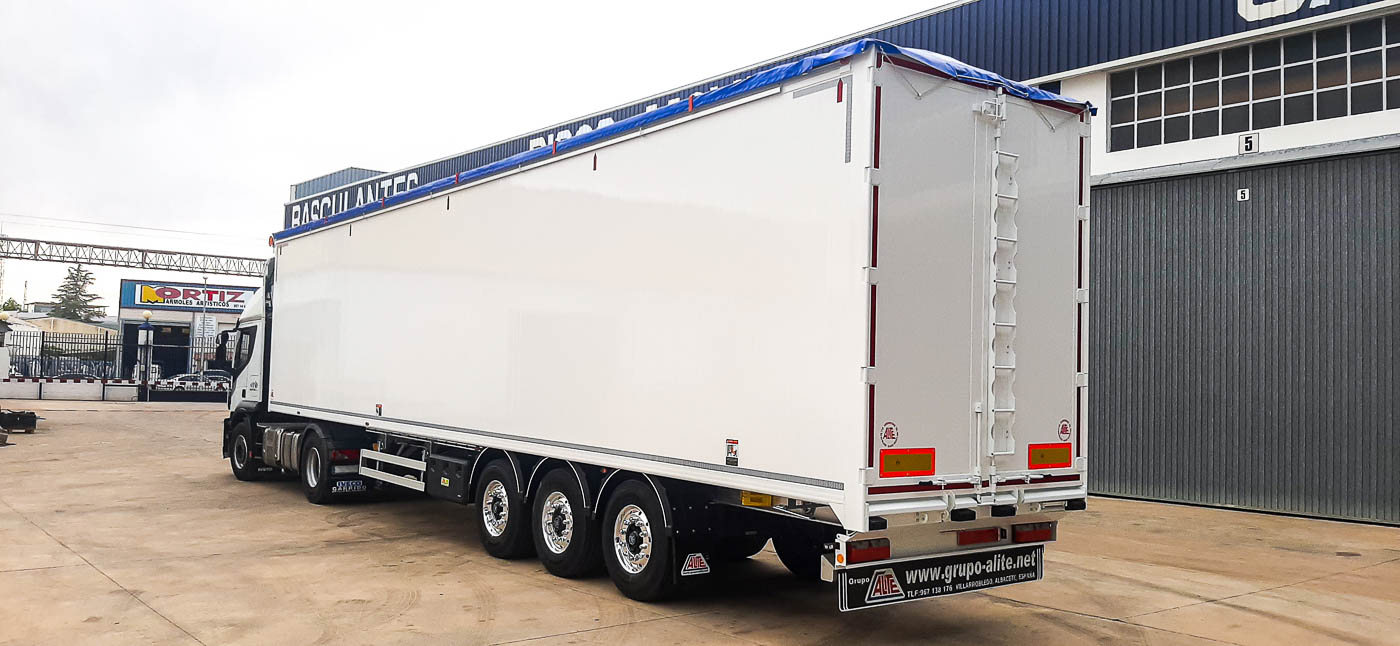

HP VOLUME
MAX VOLUME 99 m³
MAX VOLUME 99 m³
When the highest payload volume is your priority value for your vehicle selection, the HP Volume model offers you the highest payload volume in the HP range with extreme body taper and wheels with 355/50 R22.5 tires.
The HP Volume model is the maximum usable volume version of the entire HP range. Its optimized design and extreme conical construction require
towing with a towing head with a fifth wheel height of 1,000 to 1,050 mm and the mounting of 355/50 R22.5 tires on the semi-trailer.
- Standard electronic air suspension with 3 ride heights, two of them for OFF-ROAD circulation.
- Wheels with 355/50 R22.5 tires. Maximum permissible technical mass limitation to 8,000 kg per axle.
You can configure the vehicle with the multiple options available to adapt it to your purpose according to your preferences. Our proposal starts from a base vehicle with various selectable options. We are a flexible factory with complete autonomy in the production of all components. You can see the complete information with ALL the possibilities in its technical sheet.
COMPARATIVE
Technical Comparison
VALUE MODEL | HEIGH KP mm A | TPMM KP * kg B | USEFUL VOLUME m³ C | USEFUL HEIGHT FRONT / BACK mm D | TIRE F | EMPTY WEIGHT STANDARD VERSION kg |
|---|---|---|---|---|---|---|
HP CONICAL FULL KP LOW | 1,120 mm (1,100 - 1,150) | 12,000 kg | 94.8 m³ | 2,730 / 2,930 mm | 385/55 R22.5 | 7,580 kg |
HP CONICAL FULL KP HIGH | 1,200 mm (1,200 - 1,250) | 16,000 kg | 92.3 m³ | 2,650 / 2,860 mm | 385/55 R22.5 | 7,650 kg |
HP CONICAL HALF KP LOW | 1,120 mm (1,100 - 1,150) | 12,000 kg | 93.6 m³ | 2,730 / 2,860 mm | 385/65 R22.5 | 7,480 kg |
HP CONICAL HALF KP HIGH | 1,200 mm (1,200 - 1,250) | 16,000 kg | 90.6 m³ | 2,650 / 2,760 mm | 385/65 R22.5 | 7,550 kg |
HP LIGHT | 1,120 mm (1,100 - 1,150) | 12,000 kg | 94.8 m³ | 2,730 / 2,930 mm | 385/55 R22.5 | 6,880 kg |
HP VOLUME | 1,000 mm (1,000 - 1,050) | 12,000 kg | 98.8 m³ | 2,850 / 3,000 mm | 355/50 R22.5 | 7,670 kg |
* TPMM = Technically Permissible Maximum Mass.
